Description

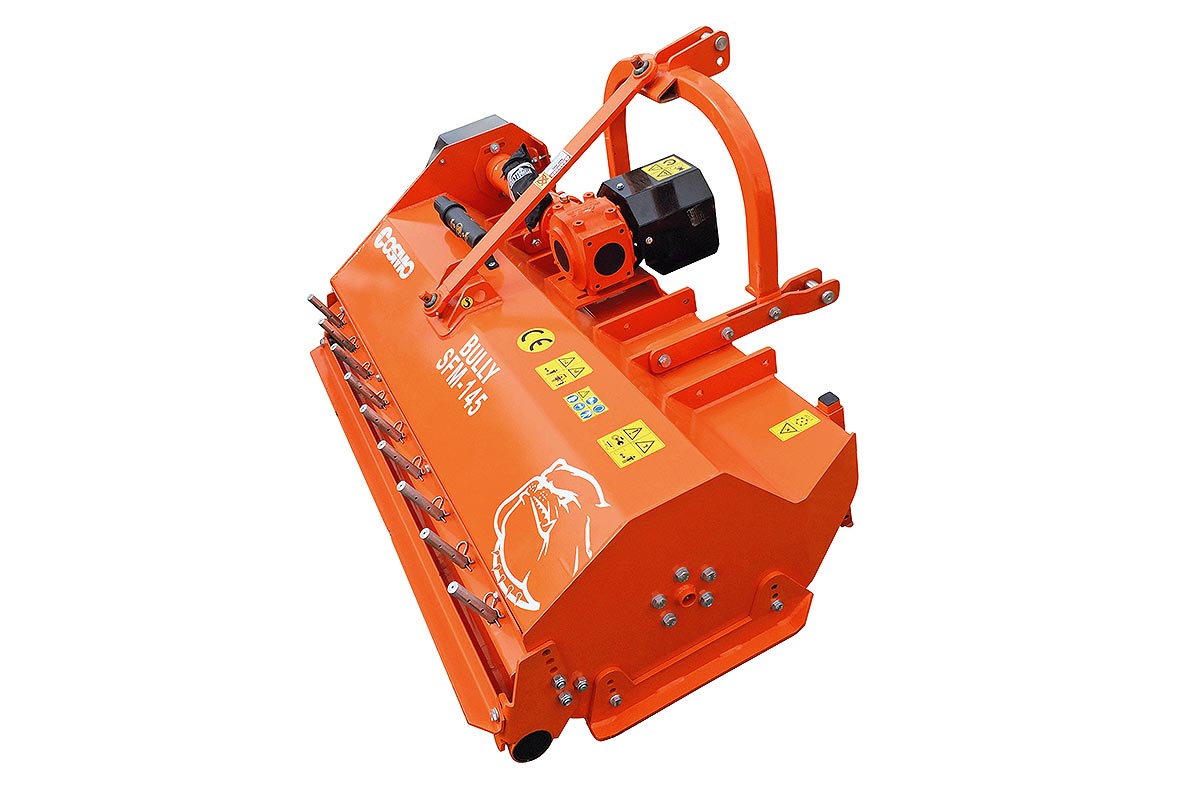

The European designed Cosmo Bully SFM-M Series Mulchers have a fixed, bolt on tower with three (3) mounting positions.

The rear of the deck has a series of height adjustable mulching rakes that hold large prunings (up to Ø50mm) in the cutting chamber for maximum mulching.

This results in a high quality cut finish in vineyards, orchards and pastures.

The Cosmo Bully SFM-M Series Mulcher is specifically designed for tractors 30 to 70hp.

Options

• Bully SFM Series Y Blades & Spacers

Models

TSFM130M – 51″/1.3m
TSFM145M – 57″/1.45m
TSFM160M – 63″/1.6m

Specifications

Description – Bully SFM130-M / SFM145-M / SFM160-M Manual Shift Flail Mulcher
Side transmission – Belt drive
Belts – Three (3) BX type (SF130-M) / Four (4) BX type (SF145-M & SF160-M)
Gearbox – 70hp, 540rpm with free wheel clutch
PTO shaft/clutch – Series 4
Skids – Adjustable, three (3) positions
Rear roller – Ø140mm, height adjustable
Finish – Powder coated
Rotor swing diameter (mm) – 380
Rotor diameter (mm) – 160
Rotor speed (rpm) – 2083
Type of blade – Hammer
No. of hammers – 16 (SM130-M) / 18 (SM145-M) / 20 (SM160-M)
Tower position/offset – Fixed/bolt on tower with three (3) mounting positions, 150mm apart
Linkage – Category 1
Guarding – CE compliant
Overall width (mm) – 1450 (SM130-M) / 1620 (SM145-M) / 1770 (SM160-M)
Working width (mm) – 1300 (SM130-M) / 1450 (SM145-M) / 1600 (SM160-M)
Cutting height (mm) – 20-105
Tractor range (hp) – 30-70 (SM130-M) / 35-70 (SM145-M) / 40-70 (SM160-M)
Weight (kg) – 366 (SM130-M) / 388 (SM145-M) / 412 (SM160-M)
