Description

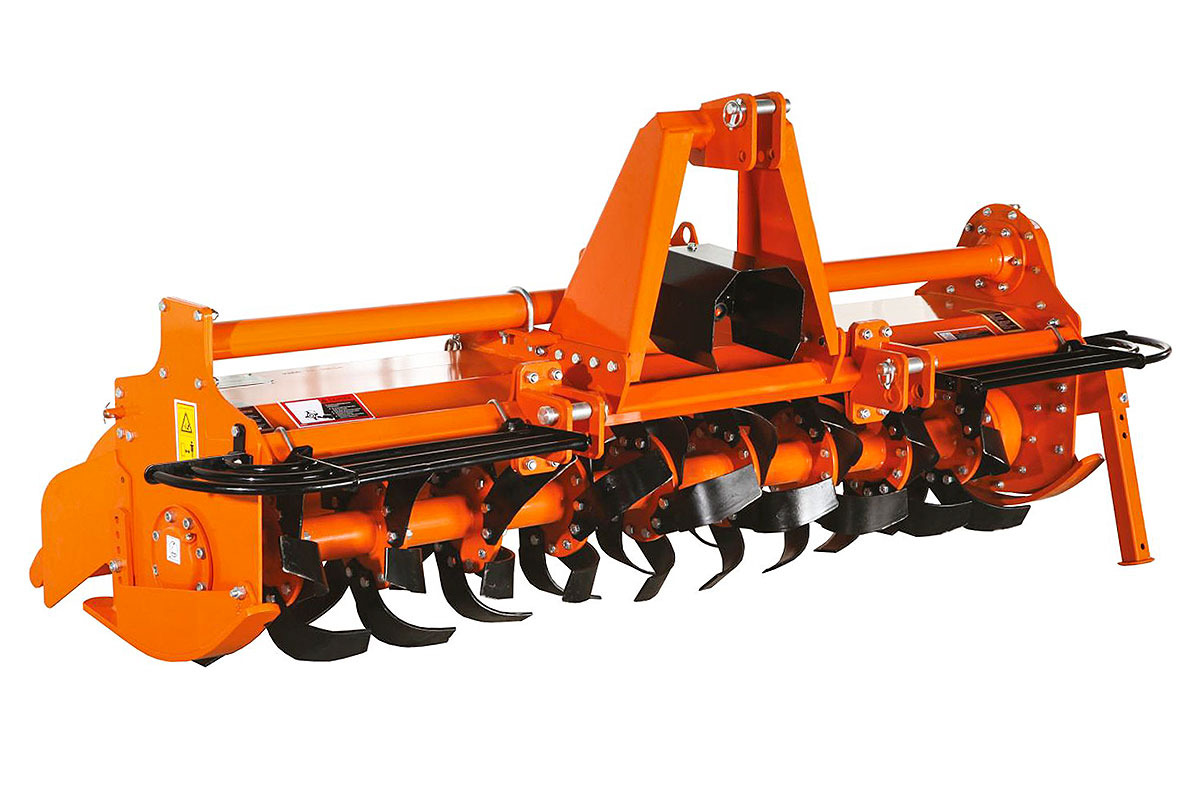

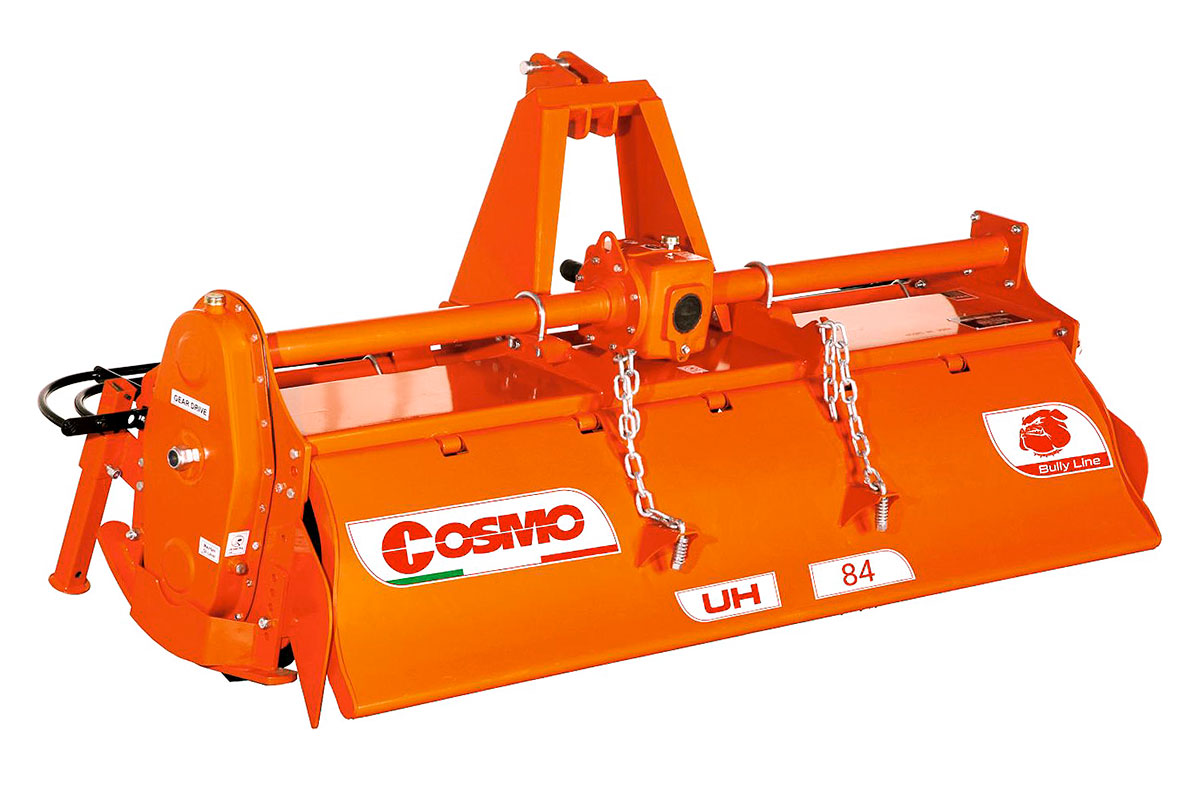

The European designed Cosmo Bully UH Series Rotary Hoes are single speed, gear driven implements specifically for tractors 50 to 75hp.

Engineered to include many features and accessories traditionally found in much larger rotary hoes, the Cosmo Bully UH Series is suitable for a range of horticultural and gardening applications including nurseries, vineyards and orchards.

The rotor, with a diameter of 480mm blade to blade, features six (6) C shaped, heat treated blades (per flange) in a speed configuration.

This design, where the blades are slightly staggered from flange to flange, reduces the tractor horsepower required to till a high volume of soil in a wide range of soil types and conditions.

Models

TBUH60 – 60″/1.5m
TBUH72 – 72″/1.8m
TBUH84 – 84″/2.1m

Specifications

Description – Bully UH60 / UH72 / UH84 Rotary Hoe
Side transmission – Gear drive
Gearbox – 75hp, 540rpm, single speed
PTO shaft/clutch – Series 6 with 200mm (8″) friction (slip) clutch
Skids – Height adjustable
Finish – Powder coated
Rotor diameter (mm) – 480
Rotor speed (rpm) – 241
No. of rotor flanges – 7 (UH60) / 8 (UH72) / 9 (UH84)
No. of blades per flange – 6
Total no. of blades – 42 (UH60) / 48 (UH72) / 54 (UH84)
Blades – Curved/speed
Linkage – Category 1 and 2
Guarding – Standard with CE compliant guards
Overall width (mm) – 1834 (UH60) / 2063 (UH72) / 2292 (UH80)
Working width (mm) – 1680 (UH60) / 1910 (UH72) / 2140 (UH80)
Working depth (mm) – 190
Tractor range (hp) – 50-75 (UH60) / 55-75 (UH72) / 60-75 (UH80)
Weight (kg) – 390 (UH60) / 420 (UH72) / 450 (UH80)

Manufacturer’s Website

Cosmo Bully – www.cosmobully.com
