Description

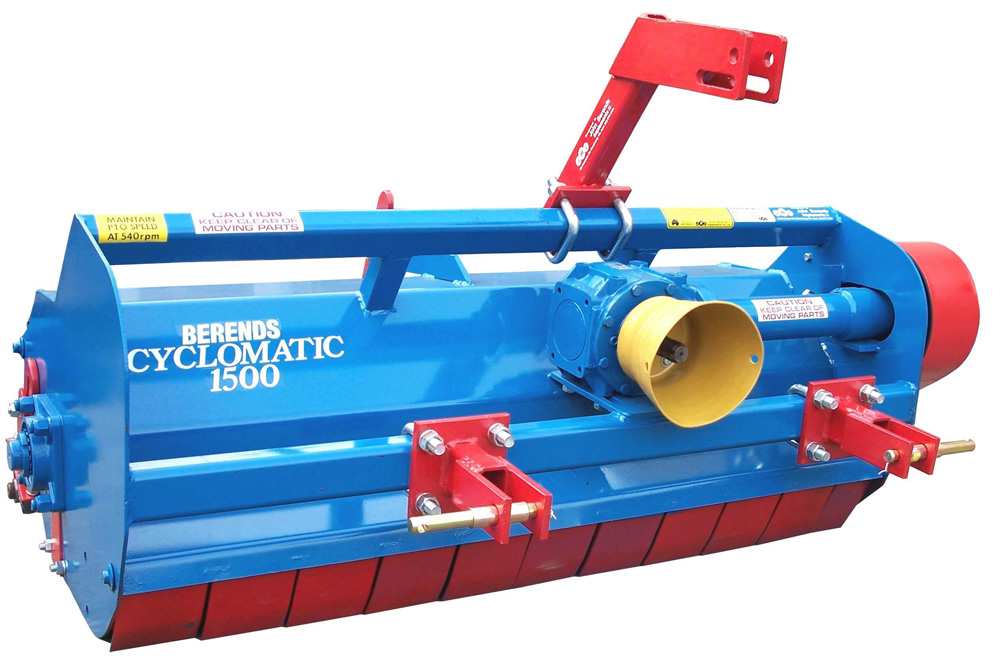

The John Berends Implements Cyclomatic Low Body Range are a multi-purpose, heavy duty mulching mowers – ideal for a variety of mulching applications. This product is perfect for rejuvenating old pastures, to cutting up prunings, gorse bush and scrub up to 50mm in diameter. The John Berends Implements Cyclomatic Low Body Range is designed and manufactured in Australia for Australian conditions. Featuring a 200km/h blade tip speed, these mulchers work well over a large variety of surfaces including sports and school grounds, golf courses, vineyards, orchards, general pastures and road-side contacting. They’re available with optional hydraulic side shift, which allows you to move the mulcher up to 230mm in either direction. All mulchers are completely made in house at John Berends Implements, including the balancing of the rotors. Constructed from a thick high tensile rotor tube, there is the option of either hardened steel Y blades or cast iron T hammers (flails). The Y blades are standard, and the more durable of the two blades whilst the optional T hammers provide a cleaner finish which may be required for sports grounds, golf courses or vineyards. T hammers will take up to 1/3rd more HP to operate. The Cyclomatic range features a heavy duty 85HP Italian oil bath gearbox, with a Series 7 Italian PTO Driveshaft with optional over-run clutch. Different models in the range have either 3 or 4 belts, to lessen shock loads. They are fitted using taper lock pullies for ease of maintenance. Adjustable rear rollers are standard, and adjustable skids and wheels are available for depth control.

Application

Continuous heavy duty slashing, especially contractor work

Features

Key Features

• Adjustable Cat 1 & 2 linkages with floating top link position for undulating ground
• Heavy duty belt cover with inspection hatch
• Adjustable back flap doubles as a scraper for the roller when in the mulching position
• Heavy duty 85HP Italian oil bath gearbox
• Series 7 Italian PTO Driveshaft
• Sturdy 5mm top deck
• 5mm thick front stone guards
• 200km/h blade tip speed
• 168 x 11mm rotor size
• Heavy duty 2” bearings with taper lock centres and dust protection plate
• Anti-wire rotor guard

Optional Upgrades

• Hydraulic side shift
• Adjustable skids and for depth control
• T hammers (flails)
• Run over clutch

Models

0157 – Cyclomatic 1500 (4’8”) Offset Mulching Mower 0126 – Cyclomatic 1800 (6’) Offset Mulching Mower 0122 – Cyclomatic 1800 (6’) Centre Line Mulching Mower 0120 – Cyclomatic 2100 (7’) Offset Mulching Mower 0150 – Cyclomatic 2100 (7’) Centre Line Mulching Mower 0128 – Cyclomatic 2400 (8’) Offset Mulching Mower 0129 – Cyclomatic 2400 (8’) Centre Line Mulching Mower

Specifications

Cyclomatic Low Body 1500 Cutting Width – 1400mm Overall Width – 1700mm Tractor Power Required (Approximate) – 40-60hp Weight – 400kg Number of Y Blades – 32 Number of Tee Hammers (flails) – 16 Alignment (adjustable) – Offset Cyclomatic Low Body 1800 Cutting Width – 1750mm Overall Width – 2000mm Tractor Power Required (Approximate) – 48-72hp Weight – 490kg Number of Y Blades – 40 Number of Tee Hammers (flails) – 20 Alignment (adjustable) – Offset/Centre Cyclomatic Low Body 2100 Cutting Width – 2050mm Overall Width – 2300mm Tractor Power Required (Approximate) – 56-84hp Weight – 554kg Number of Y Blades – 48 Number of Tee Hammers (flails) – 24 Alignment (adjustable) – Offset/Centre Cyclomatic Low Body 2400 Cutting Width – 2350mm Overall Width – 2600mm Tractor Power Required (Approximate) – 64-96hp Weight – 580kg Number of Y Blades – 56 Number of Tee Hammers (flails) – 28 Alignment (adjustable) – Offset/Centre

Warranty

12 months on design and manufacture 5 years on gearbox

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
