Description

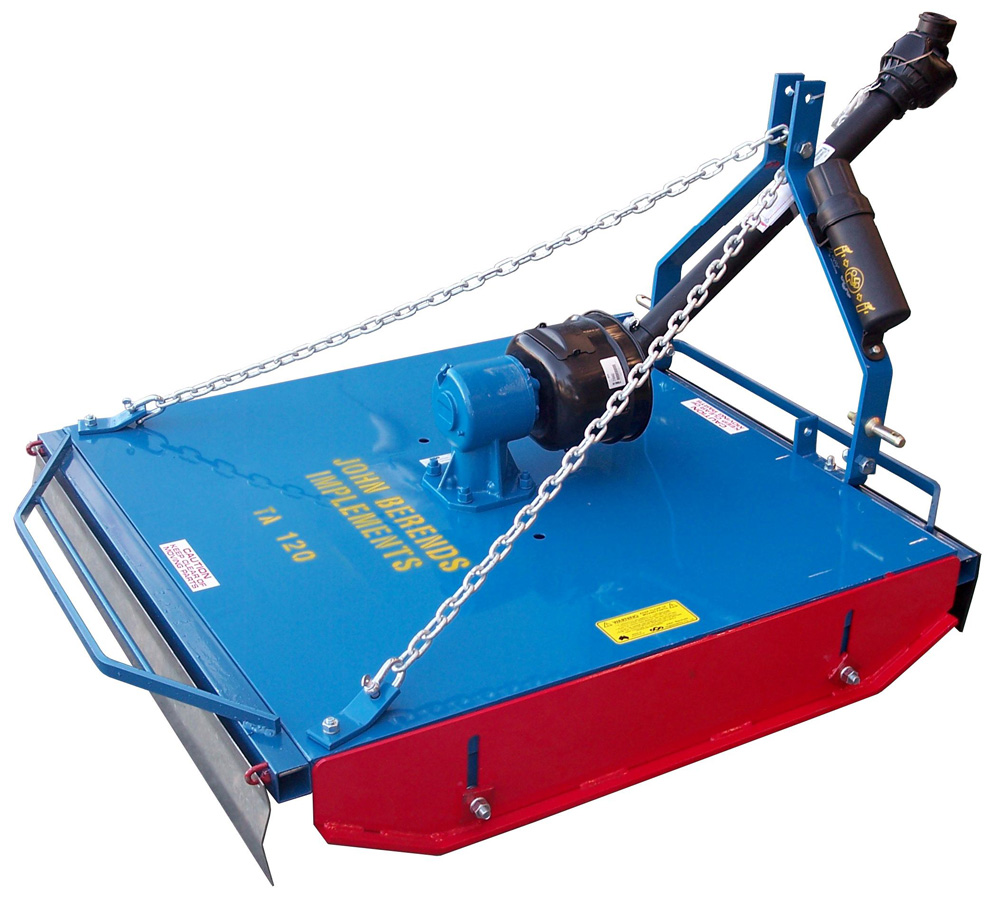

The John Berends Implements Light Duty TA Range is a lighter duty, dual mount slasher for grass and light work to suit smaller and compact tractors. Front and rear stone guarding as standard. The John Berends Implements Light Duty TA Range is Australian made using high quality European components. Great value for money! The body is designed to take real punishment, with 3mm top plate and strong 6mm thick adjustable skids. The TA Range features Italian made Bondioli & Pavesi Series 2 PTO driveshafts, with shearbolt protection rated at 900Nm. An optional Series 4 driveshaft is also available as an upgrade – it features a 2 plate slip clutch to better protect the slasher and tractor (this is included standard on the the TA135 and TA150 models).

Application

General purpose slashing

Features

Key Features

• Body designed with 3mm top plate and strong 6mm thick adjustable skids
• Bondioli & Pavesi Series 2 PTO driveshaft
• Cat 1 linkage with both offset and centre mount positions
• Hardened and tempered stepped/bushed slasher blades
• Full length hinging rear steel stone flap
• Front rubber guard
• Adjustable skids have cutting height range of 25-100mm
• 40 HP oil lubricated gearbox
• Floating headstock
• Document holder fitted

Optional Upgrade

• Bondioli & Pavesi Series 4 PTO driveshaft with 2 plate slip clutch (already included on TA135 and TA150 models)

Models

0350 – TA100 (3’4”) Slasher – Dual Mount 0351 – TA120 (3’10”) Slasher – Dual Mount 0349 – TA135 (4’6”) Slasher – Dual Mount with slip clutch 0364 – TA150 (5’) Slasher – Dual Mount with slip clutch

Specifications

TA100 Cutting Width – 1030mm Overall Width – 1120mm Overall Length – 1120mm Tractor Power Required (Approximate) – 18-30hp Cutting Height – 25-100mm Weight – 180kg TA120 Cutting Width – 1170mm Overall Width – 1270mm Overall Length – 1270mm Tractor Power Required (Approximate) – 20-35hp Cutting Height – 25-100mm Weight – 195kg TA135 Cutting Width – 1360mm Overall Width – 1460mm Overall Length – 1470mm Tractor Power Required (Approximate) – 25-45hp Cutting Height – 25-100mm Weight – 225kg TA150 Cutting Width – 1460mm Overall Width – 1560mm Overall Length – 1580mm Tractor Power Required (Approximate) – 25-50hp Cutting Height – 25-100mm Weight – 245kg

Warranty

12 months on design and manufacture
