Description

The John Berends Implements Medium Duty Range Grader Blades has been provided for when the conditions are a little harder, or if you want the flexibility of features such as rippers and ratchet tilt. The mouldboard is both thicker (8mm versus 6mm) and higher (450mm versus 350mm) than the Standard Duty range. All John Berends Implements Medium Duty Range Grader Blades feature a heavy duty reversible cutting edge, to ensure you get the most life out of the blade. All blades can be rotated 360° using 24 different angle presets, and feature a reversible blade for backfilling. The Medium Duty range comprises entirely of Offset models in a 6′ blade width. There’s a range of options, including boxed ends, stick rakes, wheel kit, rippers and ratchet tilt. A Medium Duty Hydraulic Grader Blade is also available – this product has its own product page.

Application

General purpose grading

Features

Key Features

• Fitted with positive quick release centre for angle selection, to minimise wear and tear
• 360° rotation, with 24 different angle positions
• Blade can be reversed for back filling
• Alternative holes for the lower linkage arms provide ample tilt for V-draining
• Can be offset in seconds to work outside the tractor wheel to the left or right hand side
• Choice of 5 positions each way to a maximum of 600mm offset
• Made In Australia

Range Of Options

• Pneumatic Wheel Kit for depth control
• Boxed Ends that easily bolt on or off
• Ratchet Tilt, providing 30° tilt each way
• Hydraulic Tilt (see separate product page)

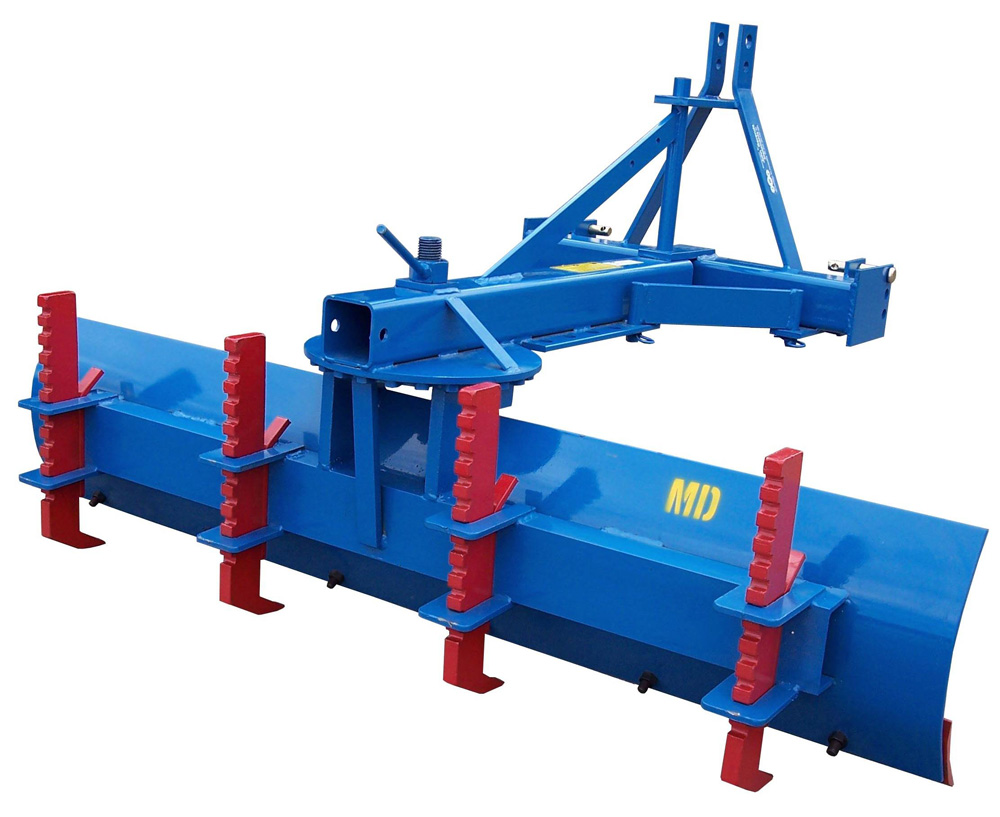

• Four heavy-duty rippers, to break ground for the next pass
• Stick rakes for raking up sticks, prunings and trash (also suitable for pasture harrowing in some conditions)

Models

0005 – 6′ Medium Duty (Offset) 0006 – 6′ Medium Duty (Offset) with Optional Rippers 0007 – 6′ Medium Duty (Offset) with Ratchet Tilt

Specifications

0005 – 6′ Medium Duty (Offset) Cutting Width – 6′ Mouldboard Thickness – 8mm Mouldboard Height – 450mm Tractor Power Required (Approximate) – 30-60hp Number of offset positions – 9 Net Weight – 200kg 0006 – 6′ Medium Duty (Offset) with Optional Rippers Cutting Width – 6′ Mouldboard Thickness – 8mm Mouldboard Height – 450mm Tractor Power Required (Approximate) – 30-60hp Number of offset positions – 9 Net Weight – 260kg 0007 – 6′ Medium Duty (Offset) with Ratchet Tilt Cutting Width – 6′ Mouldboard Thickness – 8mm Mouldboard Height – 450mm Tractor Power Required (Approximate) – 30-60hp Number of offset positions – 9 Net Weight – 206kg

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
