Description

The John Berends Implements Ripper Range enable you to do a lot of hard work with minimum effort. They’re ideal for breaking up hard ground, ripping up stumps or rocks, planting trees, laying pipe or removing rabbit warrens. All John Berends Rippers are made in Australia.

Range

Compact Single Tine Ripper

• Designed to suit compact tractors
• Cat 0/Cat 1 linkage
• 100 x 25 billet
• Reversible point 225mm x 75mm x 16mm
• Weight: 40kg
• Maximum working depth: 350mm

Standard Single Tine Ripper

• Designed to suit 25-70hp tractors
• Cat I linkage with Cat 2 bushes
• 150 x 32 billet
• Reversible point 225 x 75mm x 16mm
• Weight: 72kg
• Maximum working depth: 500mm

Heavy Duty Single Tine Ripper

• Designed for tractors over 60hp
• Cat 2 linkage
• 150 X 50 billet
• Reversible point 225mm x 75mm x 16mm
• Weight: 100kg
• Maximum working depth: 700mm

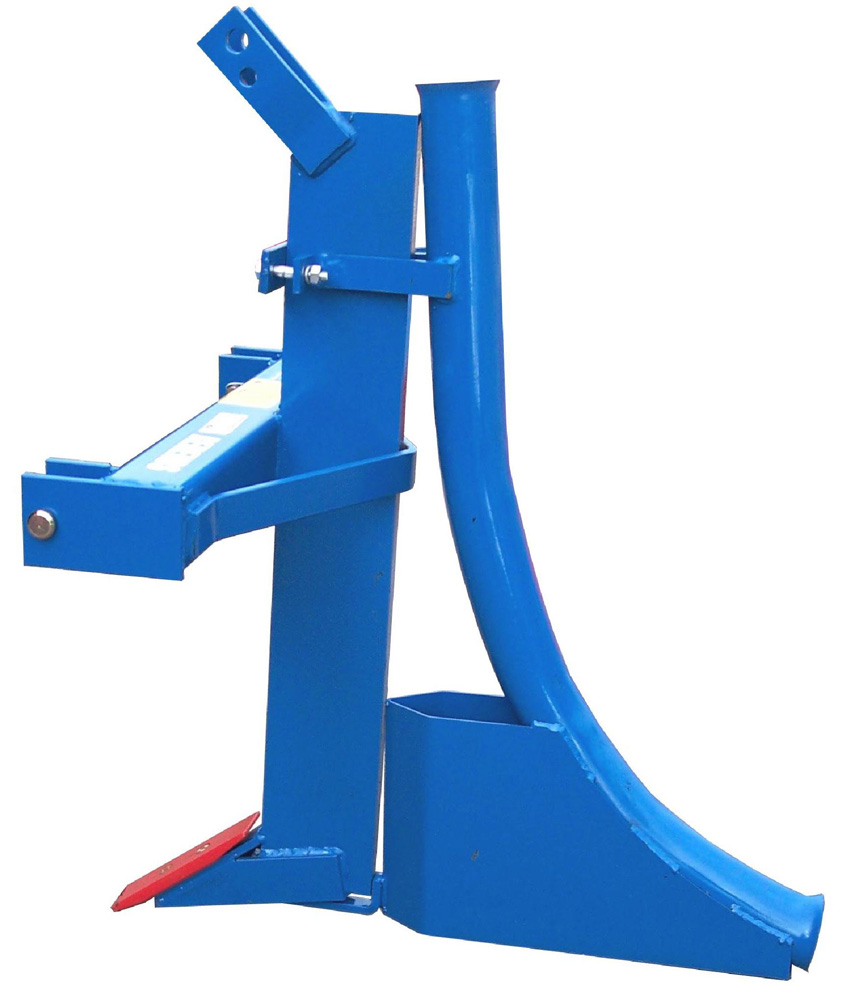

Pipelaying Attachment

• Bolts on to the Compact, Standard or Heavy Duty Single Tine Rippers
• Easily removable
• 80mm inside diameter takes 50mm polyethylene pipe

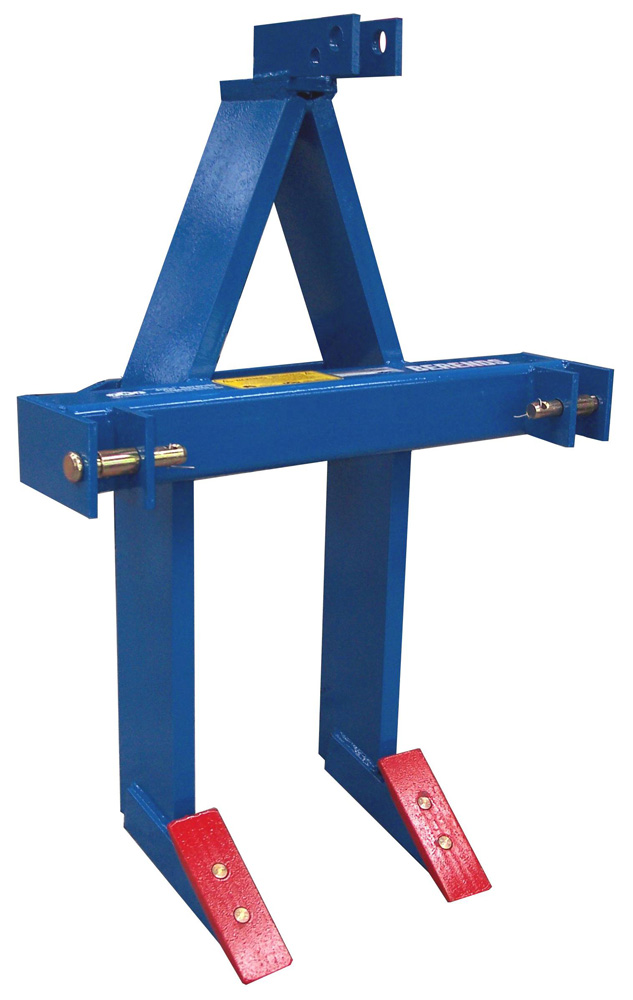

Twin Tine Ripper

• Designed to suit 60hp+ tractors depending on conditions
• Cat 1 linkage with Cat 2 bushes
• Two 150 x 32 billets
• Reversible points 225 x 75mm x 16mm
• Weight: 110kg
• Maximum working depth: 500mm

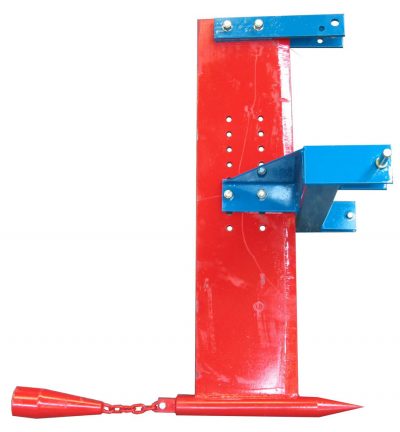

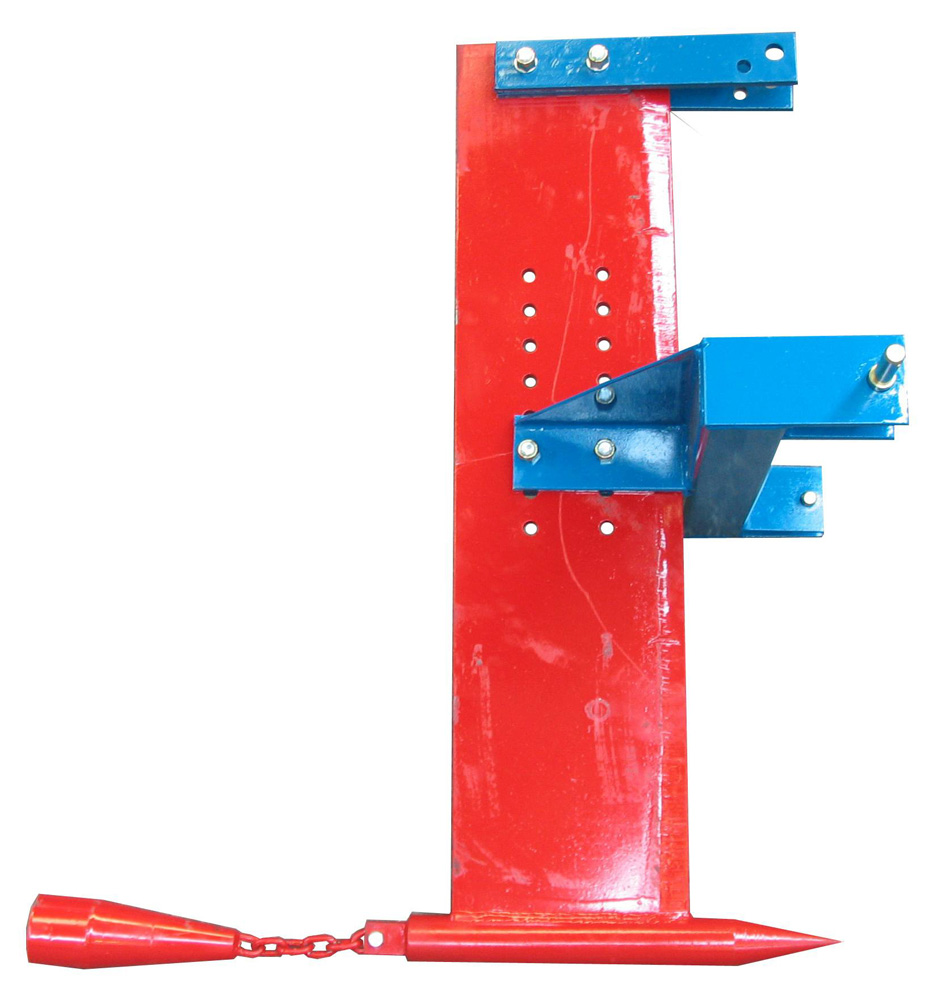

Mole Drainer

• Designed to create a “mole hole” to increase drainage in wet pastures
• Adjustable depth dual cat linkage
• 300 x 20mm tapered billet with 50mm tapered foot and floating 90mm “mole”

Models

0024 – Compact Single Tine Ripper 0020 – Standard Single Tine Ripper 0021 – Heavy Duty Single Tine Ripper 0029 – Pipelaying Attachment suits Compact 0022 – Pipelaying Attachment suits Standard & Heavy Duty 0047 – Twin Tine Ripper 0144 – Mole Drainer

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
