Description

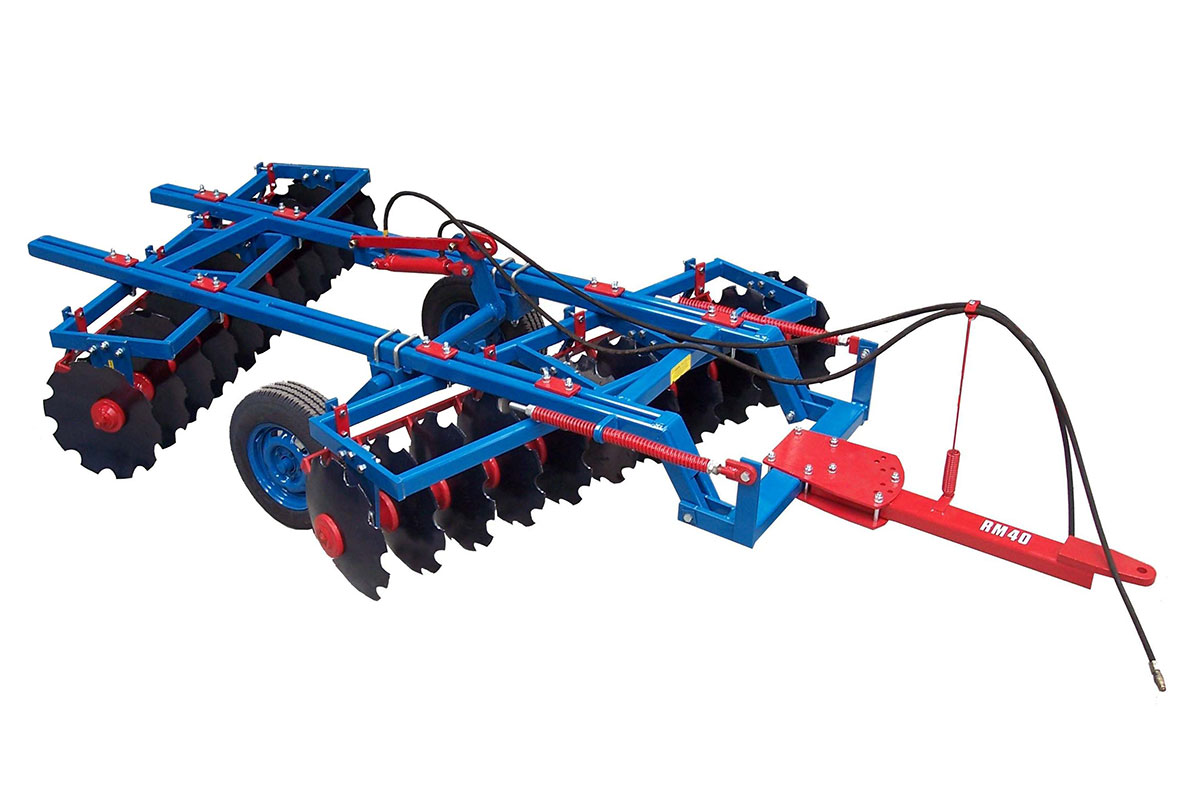

A heavy duty trailing offset tandem cultivating disc plough for medium horse power tractors. The John Berends Implements RM40 Heavy Duty Trailing Offset Discs Ploughs is a tough, rugged machine designed for Australian conditions. It is an ideal disc for both primary and secondary tillage on 40hp – 90hp tractors.

Features

Key Features

• Gibbins Rawling have been making ploughs since 1878 – over 100 years of experience!
• Great digging ability.
• Twin pressure screws can be adjusted individually to transfer weight to the rear of the cultivator resulting in even disc penetration.
• Easy gang adjustment provides a perfect level finish.
• Solid cast spools individually machined to suit the disc for extra strength.
• Triple sealed bearings.
• 230mm (9″) disc spacing.
• Fitted with 560mm x 5mm (22” x 3/16”) scalloped discs.
• Weight where it counts – in the gang – not ballast on the frame (which adds load to the bearings) like most other machines.
• The gang bolt axles are made from 28mm square high tensile steel and all bearings are greaseable.
• Prong type scrapers are standard equipment – formed scrapers available on request.
• Fully adjustable drawbar, with adjustable offset – ideal for orchards.
• Hydraulic lift for the wheels is standard. Fitted with Holden type tyres.
• Optional extras include ram and hoses for machine lift, and parking jack.

Models

0820 – 16 Plate 0821 – 18 Plate 0822 – 20 Plate 0823 – 22 Plate 0824 – 24 Plate

Specifications

16 Plate Approx. weight – 990kg No. Bearings – 6 Cutting Width – 1.83m (6’) No. Axles – 2 18 Plate Approx. weight – 1040kg No. Bearings – 6 Cutting Width – 2.06m (6’9″) No. Axles – 2 20 Plate Approx. weight – 1105kg No. Bearings – 8 Cutting Width – 2.3m (7’6″) No. Axles – 4 22 Plate Approx. weight – 1170kg No. Bearings – 8 Cutting Width – 2.5m (8’3″) No. Axles – 4 24 Plate Approx. weight – 1230kg No. Bearings – 8 Cutting Width – 2.74m (9’) No. Axles – 4

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
