John Berends Implements
RM80 Heavy Duty Trailling Offset Discs
Gibbins Rawling - For Primary & Secondary Tillage
Four, Six & Eight Axle Models - For 75-165hp Tractors
From
$23,133
Inc. GST
Pickup Or Delivery
Stock: Enquire Online

Description

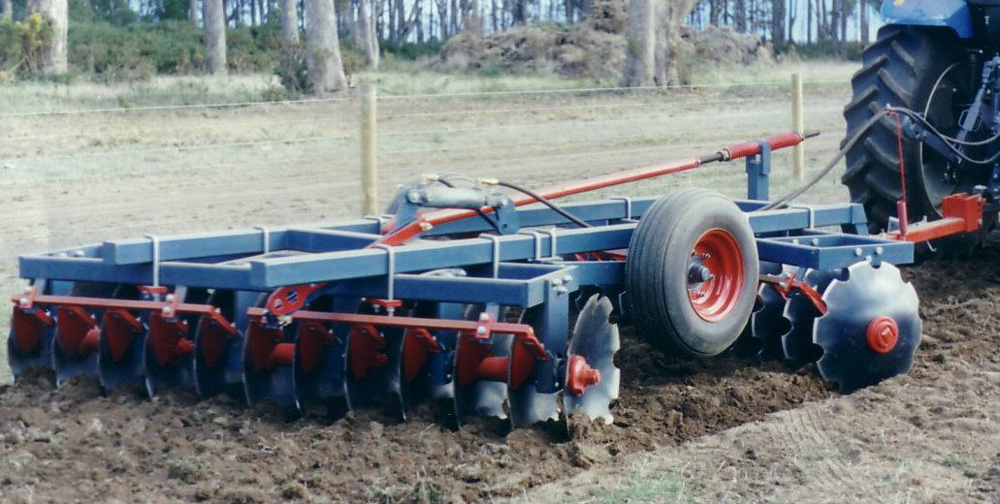

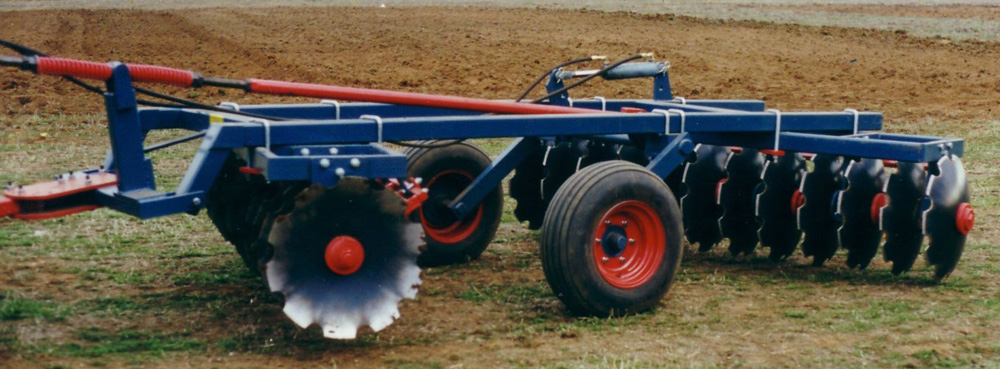

Designed for primary and secondary tillage in tough conditions. The John Berends Implements RM80 Heavy Duty Trailing Offset Discs Plough combines legendary Gibbins Rawling design with modern high quality components, including European Bellota Boron steel discs, Australian-made Eaton rams, and Ryco hoses.

The RM80 is similar to the RM75 with the main difference being the greater number of bearings and shorter axles. There are 20, 24, 28 and 32 disc models, with cutting widths ranging from 2.3m (7’6″) to 3.66m (12′).

Twin pressure screws can be adjusted individually to transfer weight to the rear of the plough, resulting in even disc penetration. The flanged disc bearings have been designed specifically for severe tillage applications, and are encapsulated in two case hardened zinc plated stampings. Two nitrile ‘O’ rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.

The solid cast spools throughout the gangs, providing ballast weight in the gangs where it counts, rather than on the main frame. Each is individually machined to suit the disc for extra strength. Prong scrapers are standard inclusion.

The RM80 uses 24″ diameter discs, in either 5mm or 6mm thickness, or 26″ diameter discs with 6mm thickness. All discs are set at 9″ spacing. The discs are long wear European Bollota Boron steel discs. Bellota Boron steel discs are manufactured under strict quality specifications that ensure correct hardness and uniformity throughout the disc. This includes clamp hardening to prevent distortion, lathe turning of the edges and hardening to 50HRc for low wear and long life.

Options include formed scrapers, parking jack and furrow fillers.

A note on Gibbins Rawling – In 1986, John Berends Implements brought Gibbins-Rawling. By taking on the Gibbins Rawling range, John Berends could offer a quality range of discs that had a long and respectable history with Australian farmers. The Gibbins Rawlings name and colours were kept until 1998, after which all machines were painted in Berends colours.

Application

Heavy duty tillage

Features

  • Fitted with two 11 x 16 flotation wheels on a 5 ton axle
  • Hydraulic wheel lift is standard
  • All models fitted with 8” Australian made Eaton rams
  • Australian made – Using Ryco hoses with a minimum burst pressure of 20,400psi
  • Single pressure screw can be adjusted individually to transfer weight to the rear of the plough, resulting in even disc penetration
  • Option of fixed or floating position
  • 40mm square high tensile gang bolts
  • Flanged disc bearings designed specifically for severe tillage applications
  • Fully adjustable drawbar
  • Solid cast spools, to keep weight in gangs (rather than frame)
  • Prong scrapers included standard
  • Optional formed scrapers
  • Optional parking jack
  • Optional furrow filler
  • Made in Australia using quality long wear European Bollota Boron steel discs

Models

0850/0860/0870 – 20 Plate with 24” x 5mm/24” x 6mm/26” x 6mm Discs
0851/0861/0871 – 24 Plate with 24” x 5mm/24” x 6mm/26” x 6mm Discs
0852/0862/0872 – 28 Plate with 24” x 5mm/24” x 6mm/26” x 6mm Discs
0853/0863/0873 – 32 Plate with 24” x 5mm/24” x 6mm/26” x 6mm Discs

Specifications

0850/0860/0870 – 20 Plate with 24” x 5mm/24” x 6mm/26” x 6mm Discs
Number of Discs – 20
Disc Diameter – Choice of 610mm (24″) or 660mm (26″)
Disc Thickness – Either 5mm or 6mm
Number of Bearings – 8
Number of Axels – 4
Cutting Width – 2300mm (7’6″)
Approximate Weight – 1700kg

0851/0861/0871 – 24 Plate with 24” x 5mm/24” x 6mm/26” x 6mm Discs
Number of Discs – 24
Disc Diameter – Choice of 610mm (24″) or 660mm (26″)
Disc Thickness – Either 5mm or 6mm
Number of Bearings – 12
Number of Axels – 6
Cutting Width – 2740mm (9′)
Approximate Weight – 1970kg

0852/0862/0872 – 28 Plate with 24” x 5mm/24” x 6mm/26” x 6mm Discs
Number of Discs – 28
Disc Diameter – Choice of 610mm (24″) or 660mm (26″)
Disc Thickness – Either 5mm or 6mm
Number of Bearings – 12
Number of Axels – 6
Cutting Width – 3200mm (10’6″)
Approximate Weight – 2190kg

0853/0863/0873 – 32 Plate with 24” x 5mm/24” x 6mm/26” x 6mm Discs
Number of Discs – 32
Disc Diameter – Choice of 610mm (24″) or 660mm (26″)
Disc Thickness – Either 5mm or 6mm
Number of Bearings – 16
Number of Axels – 8
Cutting Width – 3660mm (12′)
Approximate Weight – 2510kg

Warranty

12 months on design and manufacture


Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
