Description

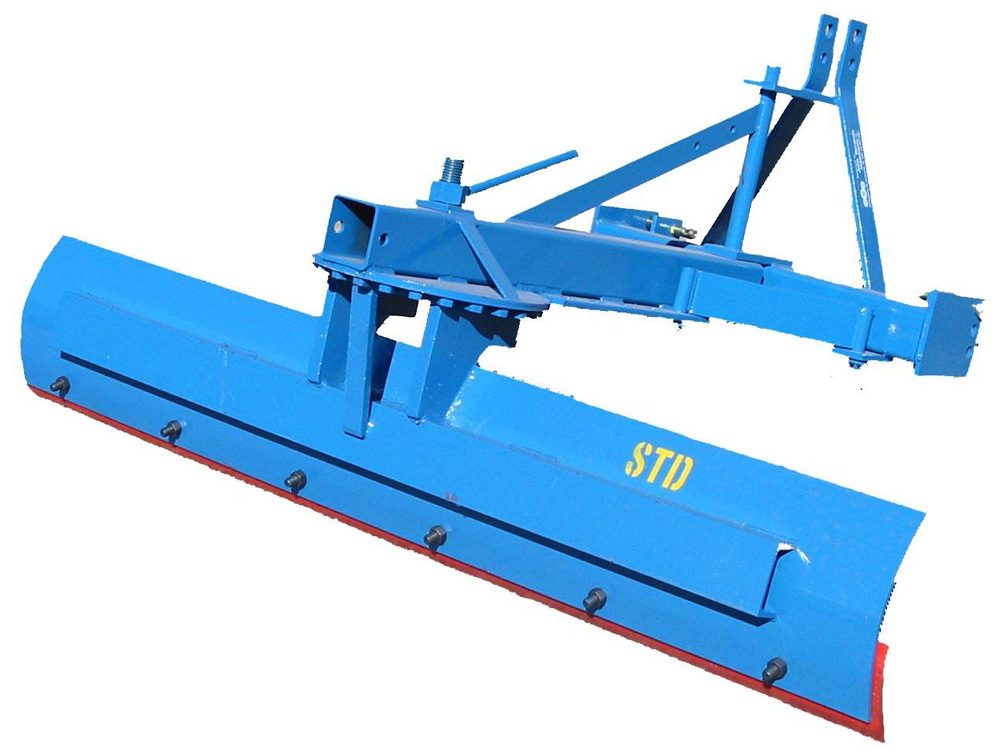

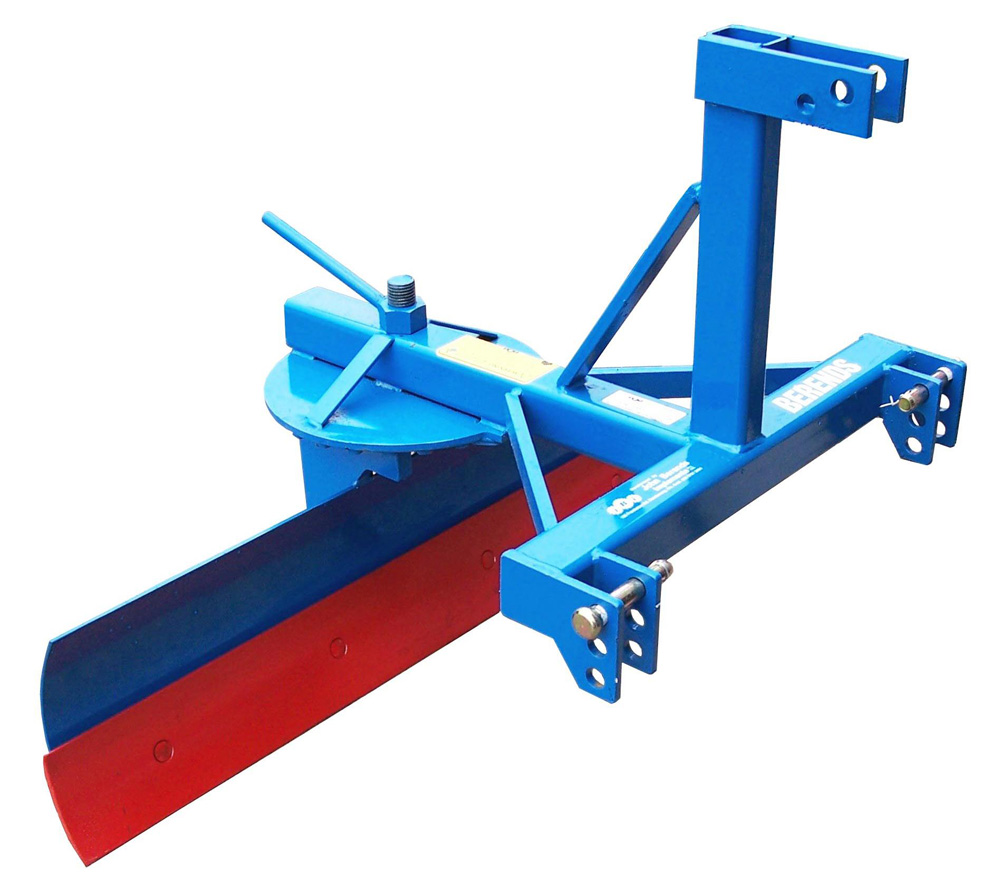

Often copied, never matched. The John Berends Implements Standard Duty Range’ Grader Blades have been designed and developed over many years to provide the user with the most versatile implement at a reasonable cost. All of our Grader Blades feature a heavy duty reversible cutting edge, to ensure you get the most life out of the blade. All blades can be rotated 360° using 24 different angle presets, and feature a reversible blade for backfilling. This range includes models with blade widths of 4′ and 5′ (known as ‘Compact’), along with the normal 6′ (Standard). The 4′ and 5′ models are available only in a Fixed configuration, while the 6′ can be had in Fixed and Offset versions. Options include boxed ends, stick rakes, and a pneumatic wheel kit for depth control.

Application

General purpose grading

Features

Key Features – All Models

• Fitted with positive quick release centre for angle selection, to minimise wear and tear
• 360° rotation, with 24 different angle positions
• Blade can be reversed for back filling
• Alternative holes for the lower linkage arms (except 6′ fixed model) provide ample tilt for V-draining
• Made In Australia

Key Features – Offset Models

• Can be offset in seconds to work outside the tractor wheel to the left or right hand side
• Choice of 5 positions each way to a maximum of 600mm offset

Range Of Options For All Models

• Pneumatic Wheel Kit for depth control
• Boxed Ends that easily bolt on or off
• Stick rakes for raking up sticks, prunings and trash (also suitable for pasture harrowing in some conditions)

Models

0002 – 4’ Compact 0016 – 5′ Compact 0008 – 6′ Standard Duty (Fixed) 0003 – 6′ Standard Duty (Offset)

Specifications

0002 – 4’ Compact Cutting Width – 4′ Mouldboard Thickness – 6mm Mouldboard Height – 350mm Tractor Power Required (Approximate) – 16-35hp Net Weight – 101kg 0016 – 5′ Compact Cutting Width – 5′ Mouldboard Thickness – 6mm Mouldboard Height – 350mm Tractor Power Required (Approximate) – 16-35hp Net Weight – 115kg 0008 – 6′ Standard Duty (Fixed) Cutting Width – 6′ Mouldboard Thickness – 6mm Mouldboard Height – 350mm Tractor Power Required (Approximate) – 20-30hp Net Weight – 160kg 0003 – 6′ Standard Duty (Offset) Cutting Width – 6′ Mouldboard Thickness – 6mm Mouldboard Height – 350mm Tractor Power Required (Approximate) – 20-50hp Number of offset positions – 9 Net Weight – 180kg

Warranty

12 months on design and manufacture
