Description

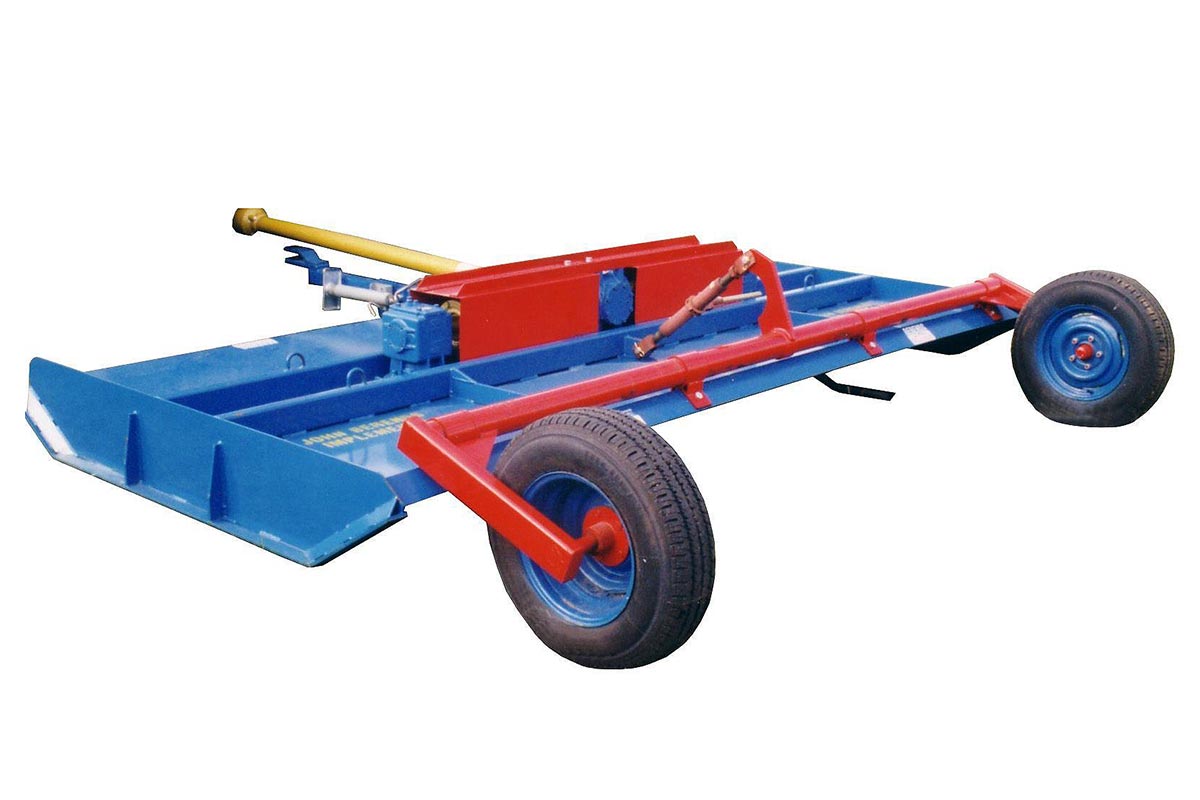

John Berends Implements Trailed Twin Rotor Range is a heavy duty slashers designed for tough conditions – available in trailing or three point linkage models.

Features

Key Features

• Available in 8′, 10′ and 12′ in three point linkage models, or 10′ and 12′ in the trailing models.
• Trailing models fitted with 14″ Light Truck tyres and three point linkage models fitted with solid rubber tyres. Puncture proofing is available.
• Twin rotors fitted to two 75hp end gearboxes connected by an extra heavy 110hp centre gearbox. Two plate slip clutch between each gearbox provides gearbox protection.
• Contra rotating rotors form a flat windrow behind the centre of the slasher, however, two small windrows can be created by reversing the direction of the rotors.
• Front and rear chains can be fitted on request.

Models

0102 – 10′ Trailed Twin Rotor Slasher 0112 – 12′ Trailed Twin Rotor Slasher

Specifications

10′ Trailed Twin Rotor Slasher Cutting Width – 2.9m Weight – 825kg Width (Overall) – 3.12m Body Construction – 5mm top, 6mm sides Tractor HP range – 60hp+ PTO – Series 7 Shaft Gearbox/PTO Speed – 540rpm Centre Gearbox – 110hp End Geraboxes – 75hp Gearboxes Protection – 2 plate slip clutch 12′ Trailed Twin Rotor Slasher Cutting Width – 3.5m Weight – 925kg Width (Overall) – 3.72m Body Construction – 5mm top, 6mm sides Tractor HP range – 70hp+ PTO – Series 7 Shaft Gearbox/PTO Speed – 540rpm Centre Gearbox – 110hp End Geraboxes – 75hp Gearboxes Protection – 2 plate slip clutch

Warranty

12 months on design and manufacture

Manufacturer’s Website

John Berends Implements – www.johnberendsimplements.com.au
