Description

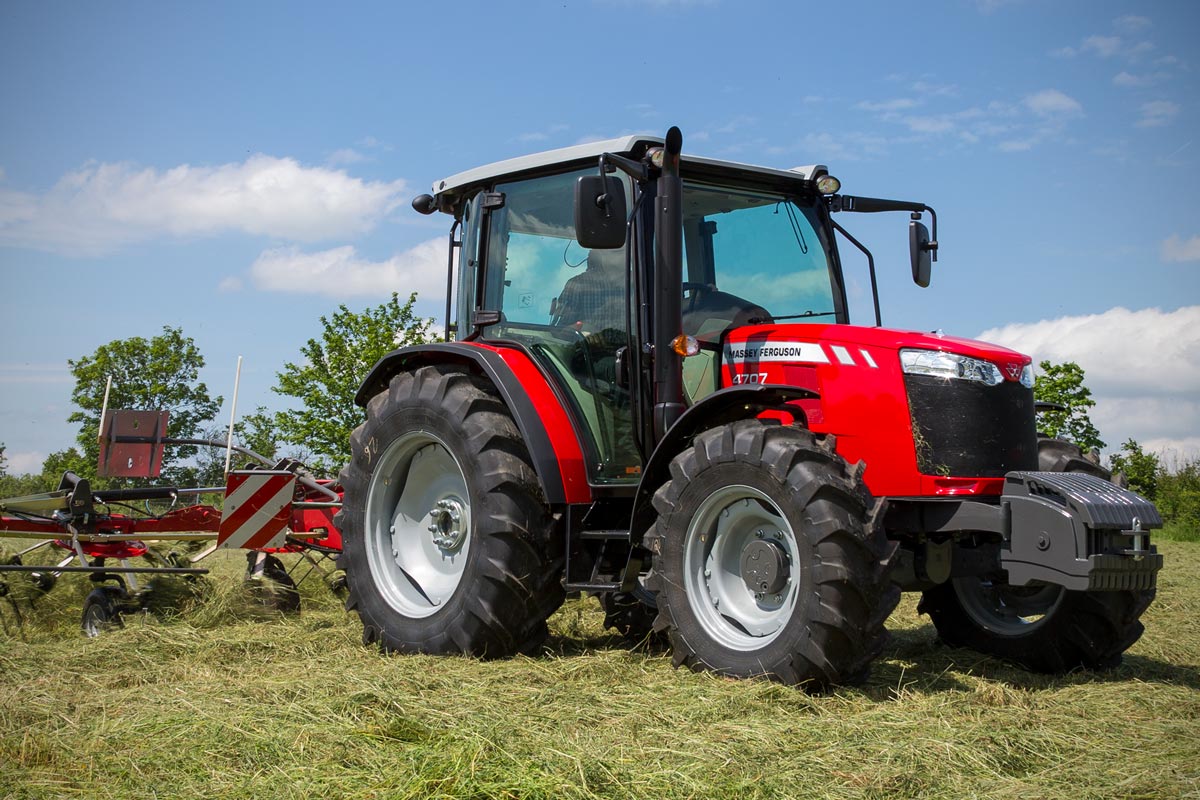

The Massey Ferguson MF4700 Global Series has taken the concept of the utility tractor and re-engineered it from the ground up to meet the needs of present and future farming. Moreover, Massey Ferguson knows exactly how crucial it is that a tractor meets the challenges that nature can put in the way of any farming activity. Thus, with the Global Series, each component and every assembly has been designed to ensure rock-solid reliability and dependable operation. Furthermore, the practical, straightforward MF4700 series is available in two specifications – ‘Standard,’ and ‘Essential’. Additionally, both feature a 12 x 12 synchromesh transmission, with the Standard specification offering mechanical clutch operation, and the Essential specification featuring hydraulic operation and a Power Control shuttle lever, for clutchless forward and reverse shifting. Additionally, Cab or ROPS versions are available. The ROPS versions maximise straightforward operation and user friendliness, while the Cab MF4700 provides an ergonomic modern interior, with fantastic 360° visibility.

Features

Key Features

• 3 cylinder 3.3L AGCO POWER Engine
• 12 x 12 synchromesh transmission with synchronised shuttle
• Pivoting front bonnet
• Footstep or Semi Platform or Operator Station
• 4WD front axles
• Electro-hydraulically engaged rear differential lock and 4WD
• Electronic Linkage Control (ELC)
• 540 or 540/540E Independent PTO
• Two Auxiliary spool valves
• Gear Driven Open Centre Hydraulic System

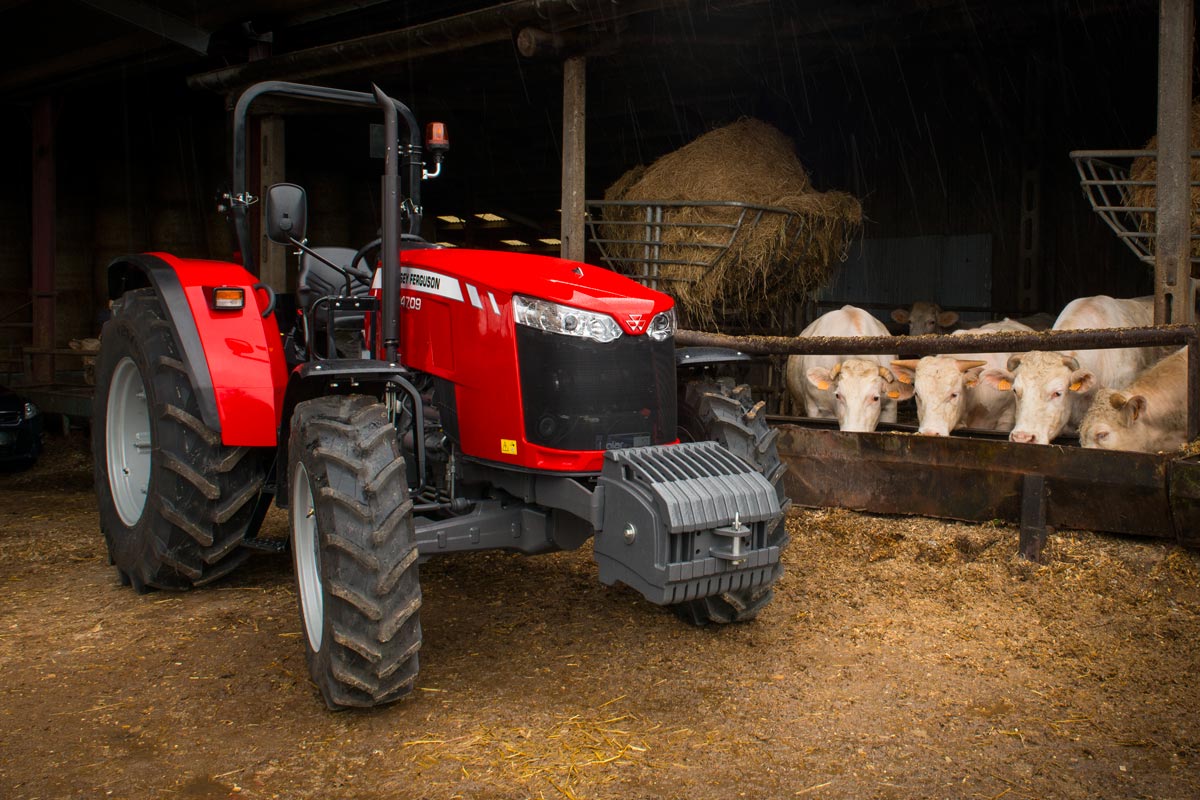

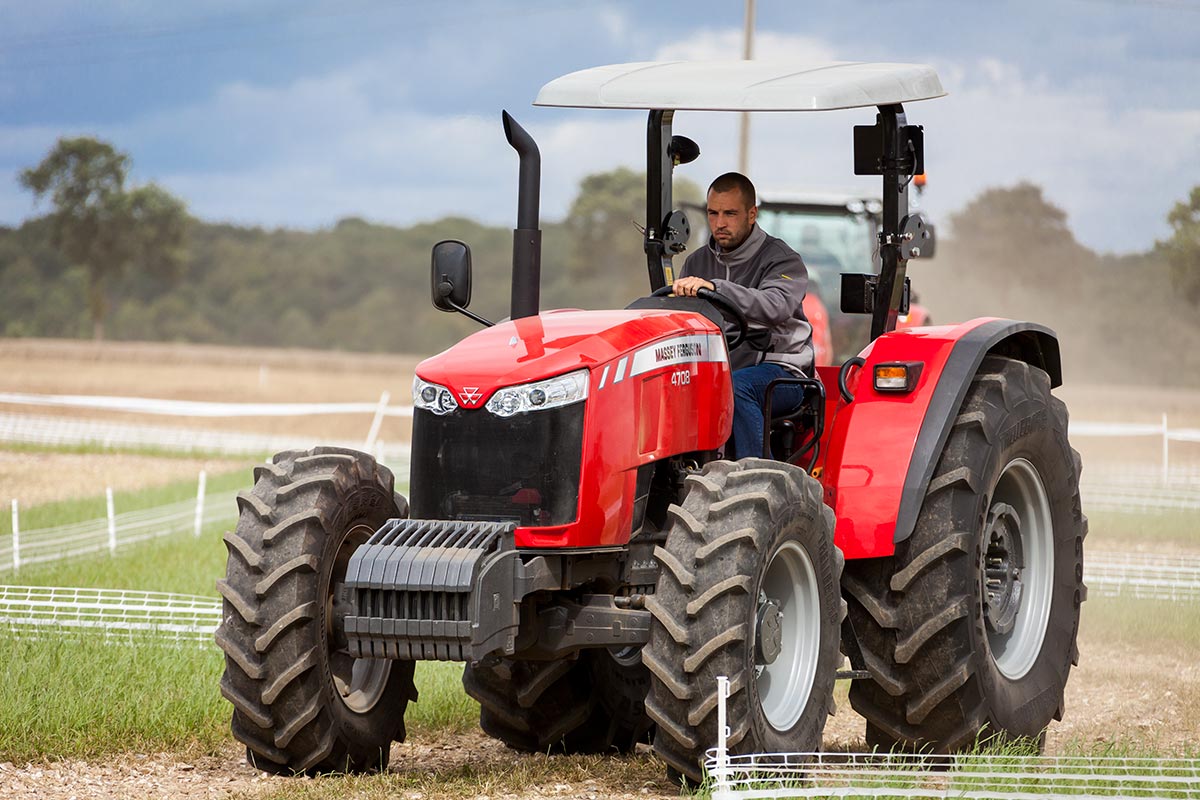

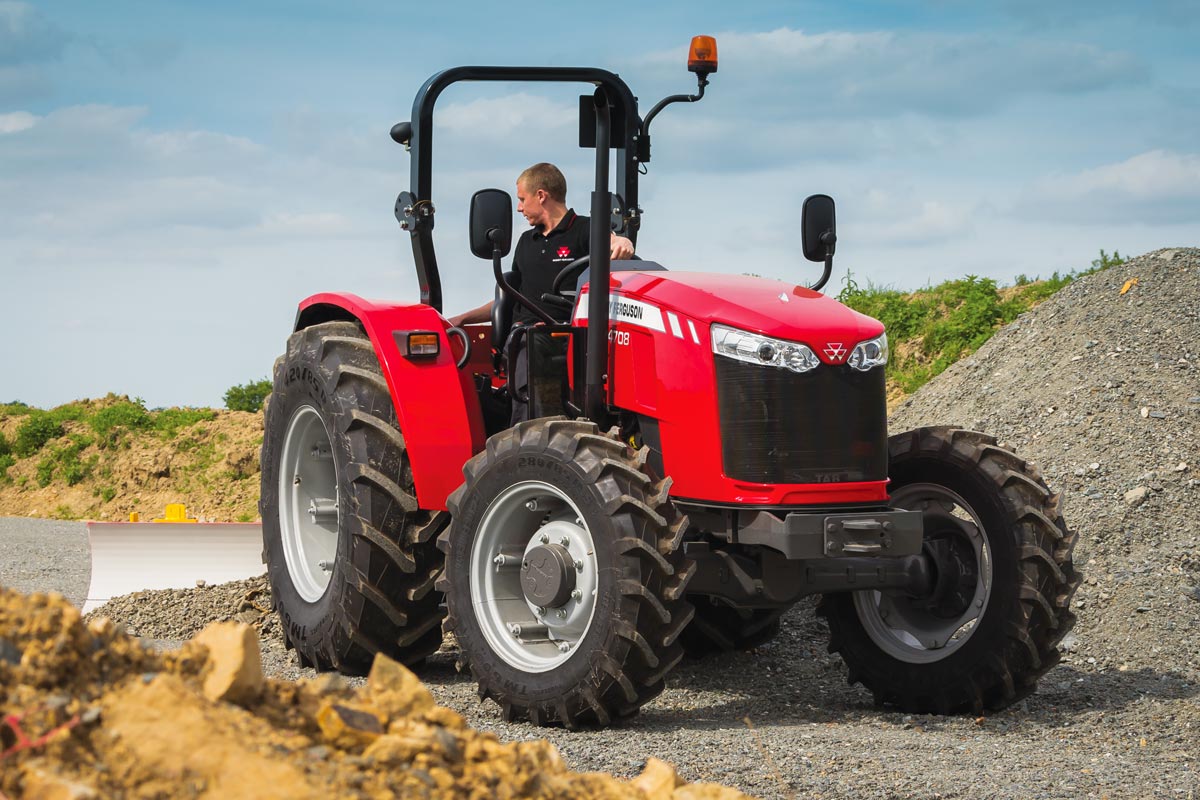

• Folding ROPS with optional steel canopy

Engine

• Proven power, perfect package – Renowned for compact, proven power and fuel efficient reliability, a 3.3-litre AGCO POWER three-cylinder engine is at the core of the Massey Ferguson 4700 Series. Max torque ranges between 296Nm (MF4707), 342Nm (MF4708) and 355Nm (MF4709).

Transmission

• Furthermore, the Massey Ferguson Global Series tractors feature all new synchromesh transmissions. With six automotive-style synchronised gears and a synchronised low to high range change. As a result, the total of twelve forward and twelve reverse speeds provide unmatched flexibility and easy use.

Shuttle Options

• Standard specification – Synchronised mechanical forward and reverse shuttle. Thus, fitted to all Standard Variants is a simple, yet exceptionally easy to use synchronised mechanical forward and reverse shuttle located to the left of the operator’s seat. Moreover, Clutch operation is a simple and effective mechanical dry-plate type giving great functionality in a cost effective package.

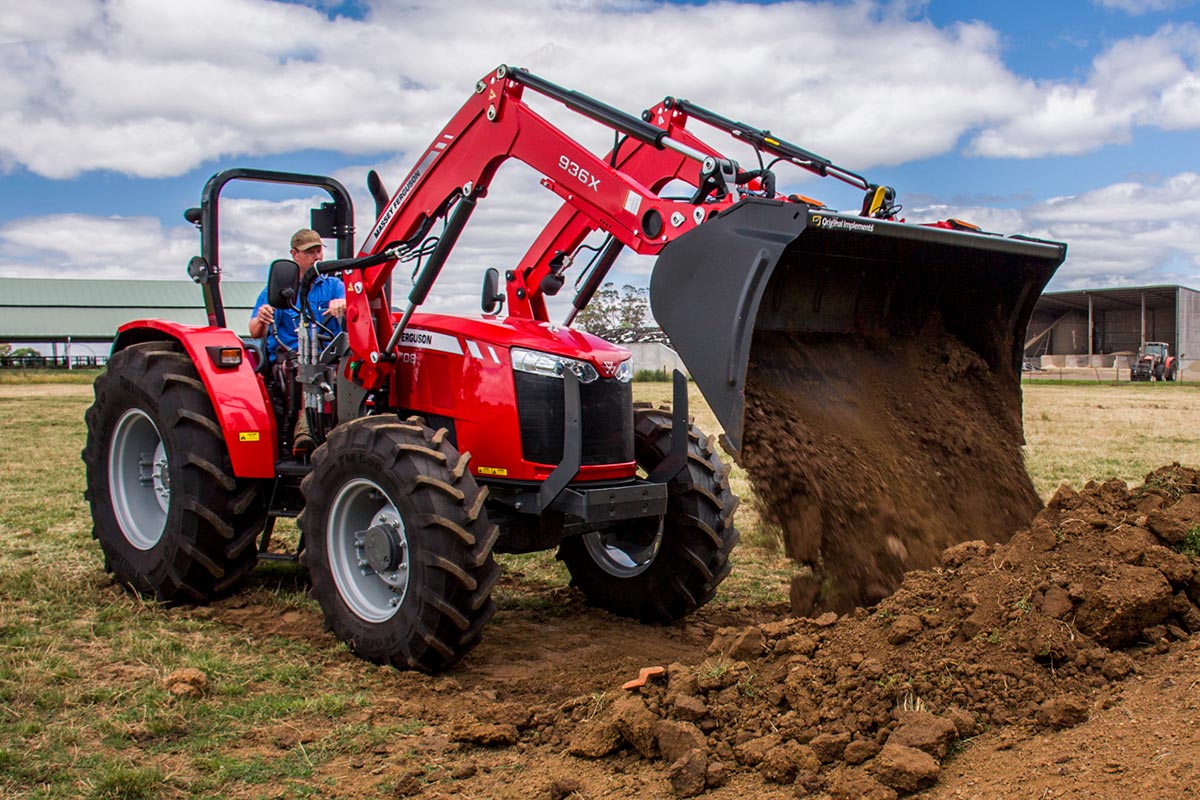

• Essential specification – Power shuttle – Forward to reverse as quickly as you like. Thus, for the ultimate in forward and reverse shuttle operation, the Essential Variant is available with the Massey Ferguson Power Control Lever. Similar in design and operation to the Power Control Lever featured on Massey Ferguson products such as the MF 7700 and MF 8700, the new Power Control Lever is located to the left of the steering column and features Comfort Control to alter the aggressiveness of the direction change. Coupled with a multi-plate wet clutch and the 12×12 synchromesh transmission, this gives the operators a highly flexible and easy to use system designed for operations such as loader work where frequent changes of direction are required.

Power Any Implement

• Furthermore, there is no limit to the range of powered equipment that can be put to work behind the Global Series tractors. Thus, all are fitted with a 35 mm/six-spline PTO shaft providing a 540 rpm PTO speed and protected by an independent PTO clutch (IPTO). 540/540E is base on all Global Series Essential models. The gear pump open centre hydraulic system produces 65L/min for the MF 4700 Series. This also supplies the electronic controlled rear-linkage to give a lift capacity of 3,300kg.

Models

MF4707 – 74hp, ‘Standard’ specification in ROPS, ‘Essential’ specification in ROPS MF4708 – 82hp, ‘Standard’ specification in ROPS, ‘Essential’ specification in ROPS or Cab MF4709 – 95hp, ‘Essential’ specification in ROPS or Cab

Specifications

Please download the Massey Ferguson Global Series brochure for more information.
