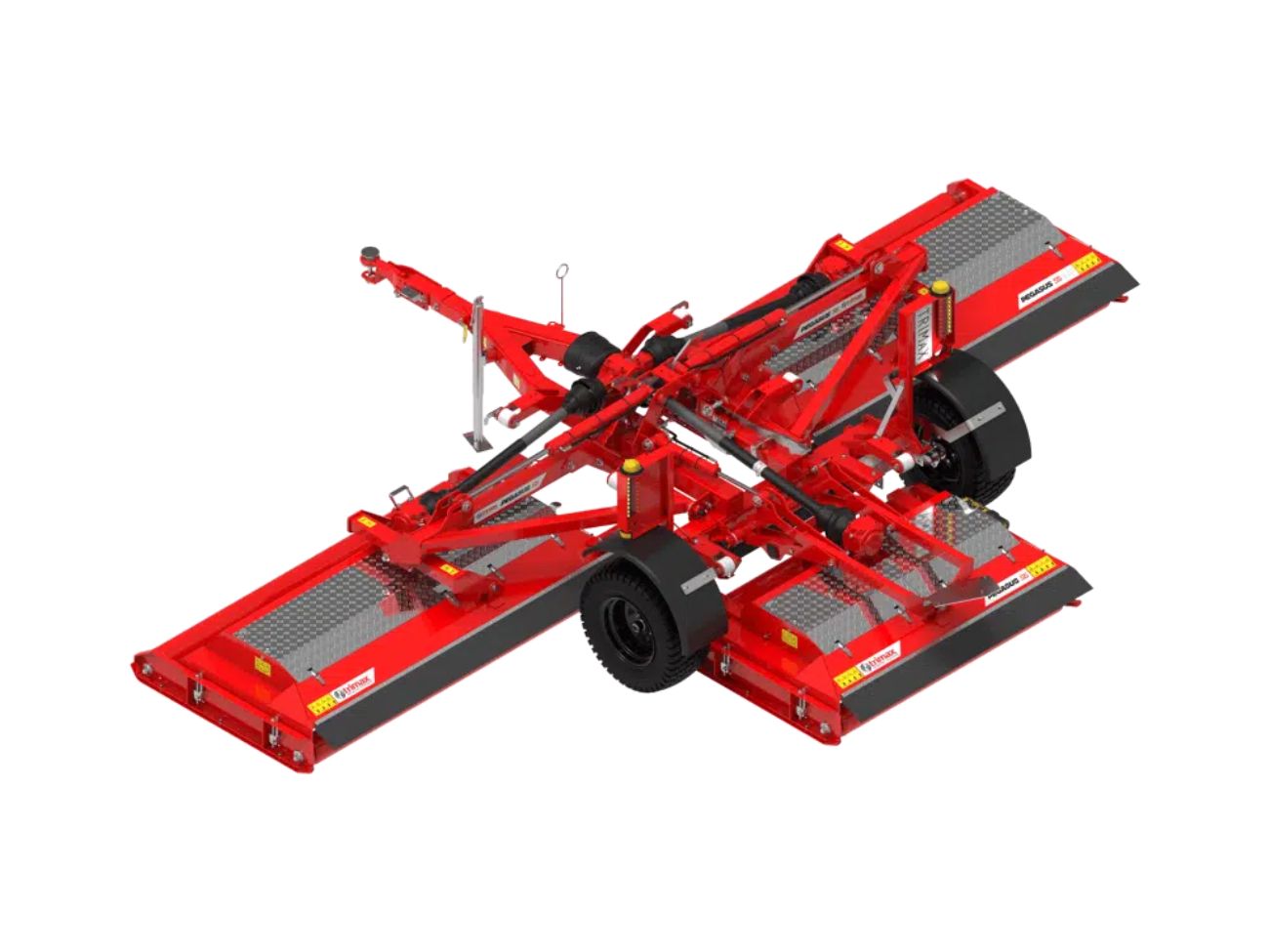

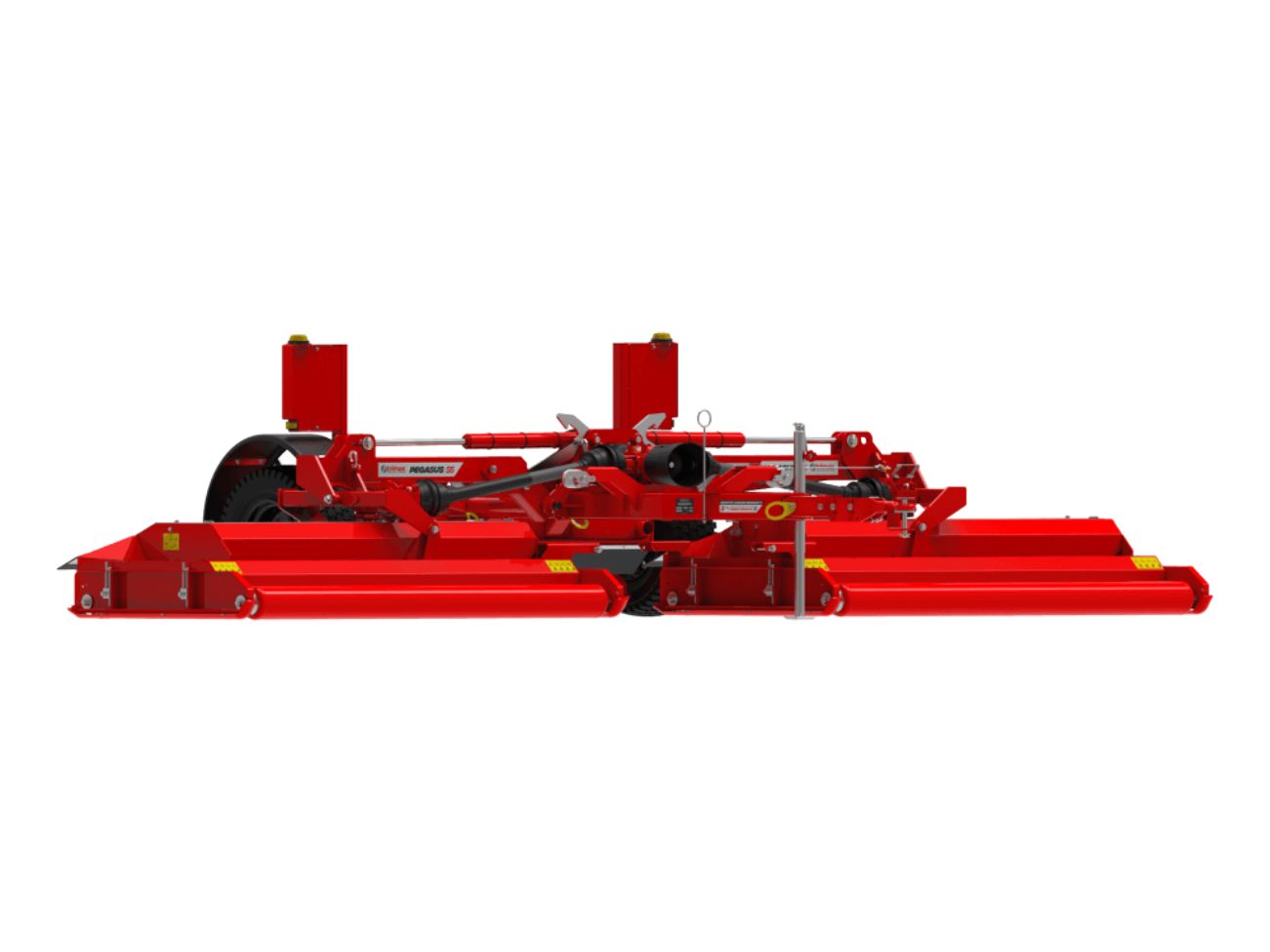

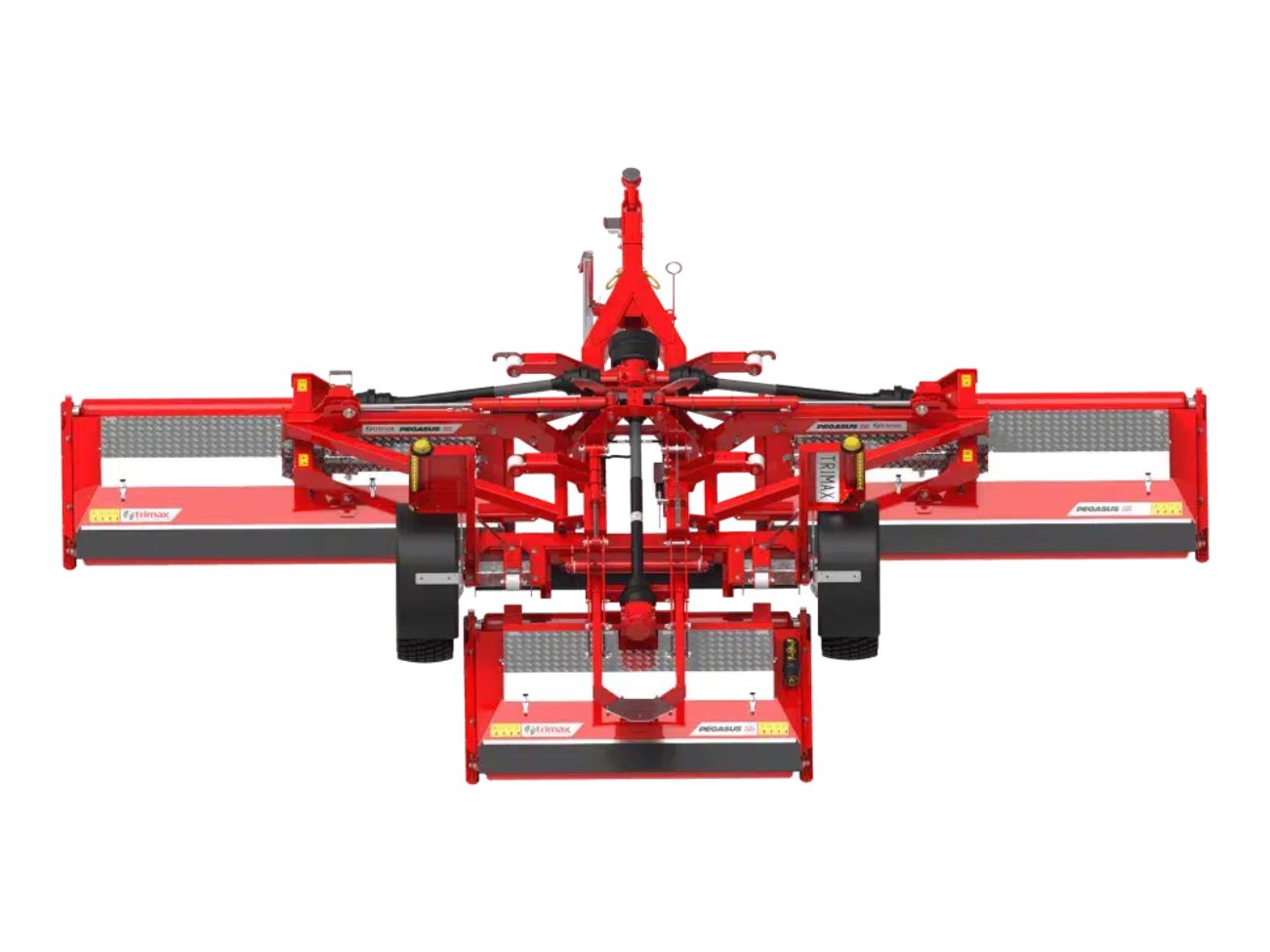

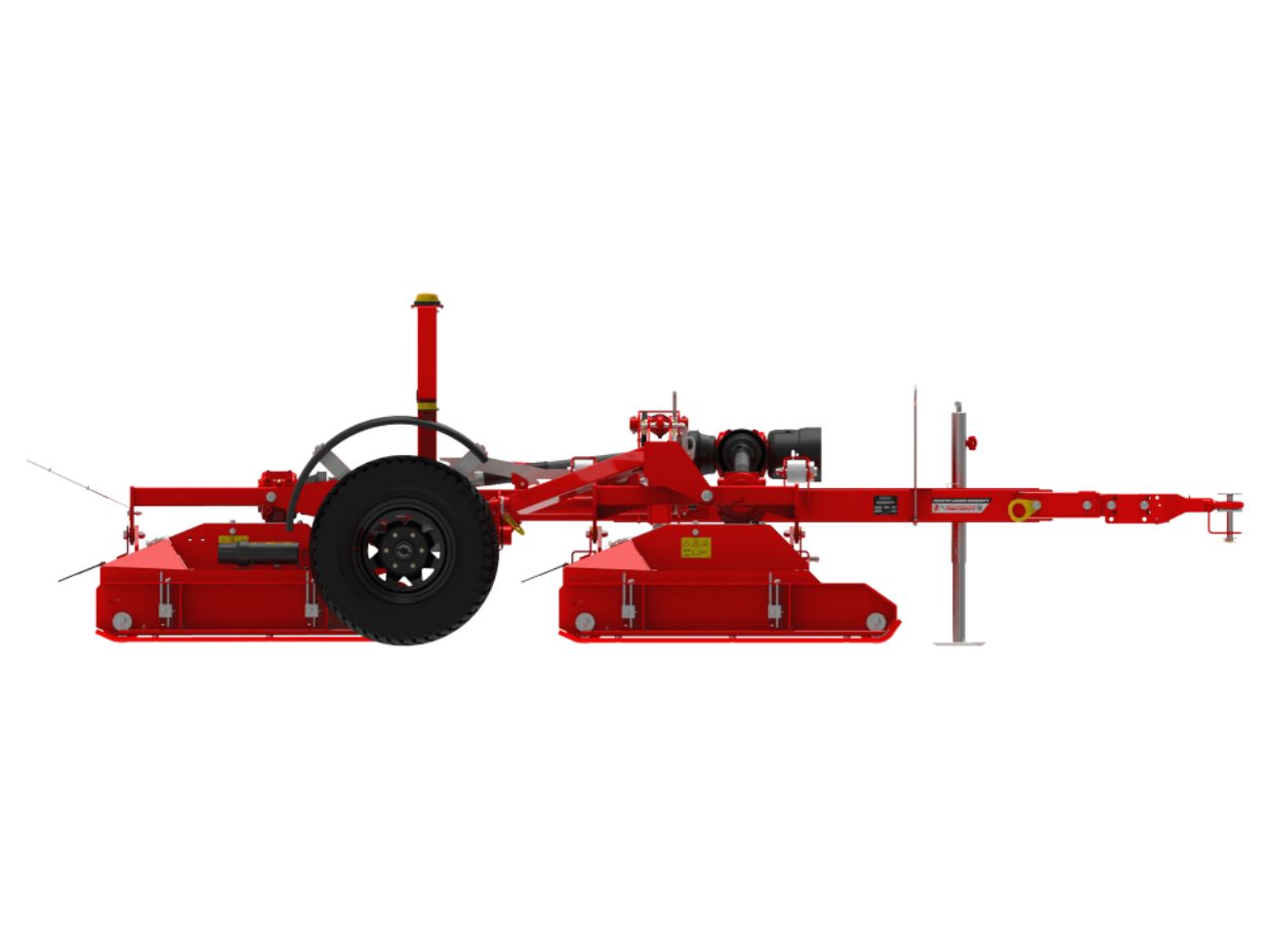

Trimax Pegasus S5 Rotary Mower At KC Equipment

Description

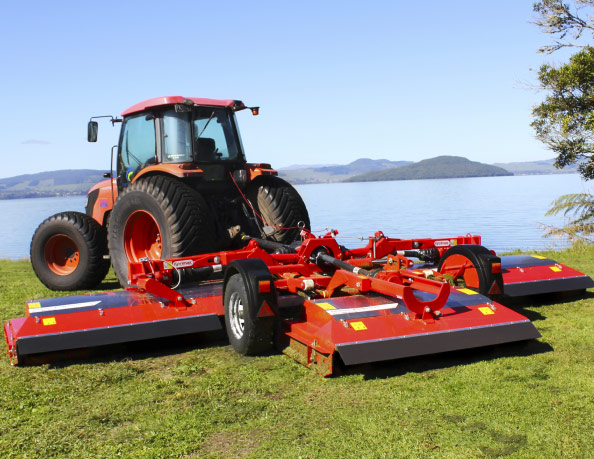

Trimax Pegasus S5: The Gold Standard in Wide-Area Mowing for Parks, Airports, Sports Fields & More.Since 2001, the Trimax Pegasus has set the standard in wide-area mowing for parks, reserves, airports, racecourses, sports fields, and turf farms. With the introduction of the new Trimax Pegasus S5, Trimax raises the bar once again. Built to be stronger, smarter, and safer, the Pegasus S5 is engineered to outperform.

For over 20 years, the Pegasus has led the industry, originally debuting as the world’s first multi-deck roller mower. Known for its rugged design and versatility, the Pegasus series offers fast spindle speeds and deep mowing decks for a high-quality, consistent cut across a wide range of surfaces. With its articulating decks, the Pegasus provides an even cut on light to moderate contours, ensuring a pristine finish every time. The  Trimax Pegasus S5 further enhances the strength, durability, and efficiency that Trimax is known for, designed to extend machine life and minimize downtime—ideal for demanding, full-time commercial mowing.

Features

3 Year Warranty

• We build mowers that last and they’re supported with a 3 year industry leading warranty.

Low Maintenance

• With zero daily maintenance required, we’ve reduced grease points by 50% and annual grease consumption by 80%.

LazerBladez™

• Achieves a superior cut and finish and are more cost efficient than cylinder reels or solid blade beams.

Full Width Rollers

• Full width front and rear rollers follow contours and provide excellent anti-scalp protection.

Auto Belt Tensioning

• Improves drive to the spindles without requiring manual belt adjustments.

Wheels Run On Cut Grass

• The rear deck is located between the transport wheels so grass is not flattened prior to mowing.

Belt Cavity Dual Wash Flaps

• Provides easy access for removal of grass and drainage of water from belt cavities.

In-Cab Unlock System

• Unlock the mower side decks’ transport lock from the convenience of the tractor seat using a release rope.

Product Options

Nexablades

• Scientifically designed for high-end turf giving a superior cut and spread when it matters most.

Quattro Blade System

• This system adds 2 more blades to each spindle (2 flat & 2 upturned) for a finer cut on warm season grasses.

Storage Box

• The Storage Box can be mounted to the mower with the Lighting Kit with Storage Bracket for easy access to spare parts and tools in the field.

Roller Scrapers

• Trimax Helical Scrapers operate with reduced tension but apply a constant pressure across the roller to assist with the cleaning of debris.

Electric Brakes With Breakaway

• Electric Brakes reduce the braking force needed from the tractor and include an adjustable brake controller with a proportional boost for improved performance. Included is a breakaway system to comply with registration requirements.

Anti-Bounce Skids

• Ideal for high speed mowing, Anti-Bounce Skids reduce the ‘scalping’ effect when mowing on uneven turf. Helps to ease the mower over humps between the front and rear rollers. (Currently unavailable on the ProCut 210 model).

Galvanised

• Hot-Dip Galvanizing provides added protection against corrosion. This is especially useful in coastal environments with high salt concentrations and applications with high fertilizer usage.

Turf Tyres

• Trimax turf tyres help distribute the weight of the mower for less ground disturbance. Recommended for turf/sod farms or fine turf applications. A mudguard option for turf tyres is also available.

Electric Unlock

• Replaces the standard in-cab transport lock release rope with an electric actuator. This is operated by a push-button remote.

Road Kit

• Includes strobe beacons, slow-moving vehicle triangle, license plate mount and light, safety chains, and high visibility lights for the side and rear of the mower.

Spare Road Tyre & Mount

• An easy and convenient mounting kit for attaching a spare road tyre to the mower. Spare tyres (road and turf tyres) without mounting kits are also available.

Trimax Connect

• A free app available for Trimax Multi-Lift System customers. Allows bluetooth mower connection to track mow hours, manage key service activity or control MLS functionality.

Multi-Lift System

• The MultiLIFT System (MLS) is a combination of QuikLIFT and IndividualLIFT with the additional benefit of BiLIFT (rear deck-only mowing) for narrow gateways and driveways. Fitted with Drive Protect and timed blade spin-down for machinery protection and bystander safety.

Models

Pegasus S5 493
Pegasus S5 610
Pegasus S5 722

Specifications

Pegasus S5 493
Cutting Width – 4.94m (194”)
Overall Width – 5.1m (200”)
Width (Transport Mode) – 2.53m (99”)
Overall Length – 4.65m (183”)
Cut Height Range – 10-110mm (3/8″ – 4 1/3″)
No. of Blade Spindles – 9
Approx Weight – 2200kg
Minimum PTO Output* – 50hp
Transport Height – 2.62m (103”)
Warranty (Years) – 3
Workrate (6 mph) – 2.96 hectares/hr
*Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain.

Pegasus S5 610
Cutting Width – 6.09m (240”)
Overall Width – 6.25m (246”)
Width (Transport Mode) – 2.53m (99”)
Overall Length – 4.65m (183”)
Cut Height Range – 10-110mm (3/8″ – 4 1/3″)
No. of Blade Spindles – 11
Approx Weight – 2440kg
Minimum PTO Output* – 55hp
Transport Height – 3.2m (126”)
Warranty (Years) – 3
Workrate (6 mph) – 3.64 hectares/hr
*Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain.

Pegasus S5 722
Cutting Width – 7.23m (285”)
Overall Width – 7.39m (291”)
Width (Transport Mode) – 2.53m (99”)
Overall Length – 4.65m (183”)
Cut Height Range – 10-110mm (3/8″ – 4 1/3″)
No. of Blade Spindles – 13
Approx Weight – 2660kg
Minimum PTO Output* – 60hp
Transport Height – 3.8m (150”)
Warranty (Years) – 3
Workrate (6 mph) – 4.34 hectares/hr
*Minimum PTO output is a guide only. Requirement varies with the type of work and the terrain.
