Description

The Vicon Twin Disc Spreaders is for modern farmers optimal spreading of fertiliser means using the exact amount of nutrition to avoid overlap. Vicon fertiliser spreaders guarantee accurate spreading, are easy to operator and provide many years of trouble-free usage. This means higher yields, lower costs and less waste. The Vicon Twin Disc Spreaders follow the RotaFlow Principle: 1. No impact, no fragmentation, no dust 2. Accurate spread pattern 3. Minimal wind influence, maximum tolerance 4. Consistent spread pattern 5. Guaranteed accuracy on slopes

RO-C700 Features

Standard features include:

• All vanes for 9-19metres
• Overload clutch
• Stainless steel hose connections
• Robust hand spreading disc can be shut off
• Grading box to test fertiliser quality

Optional:

• Fine application kit and LED lighting set.

Models

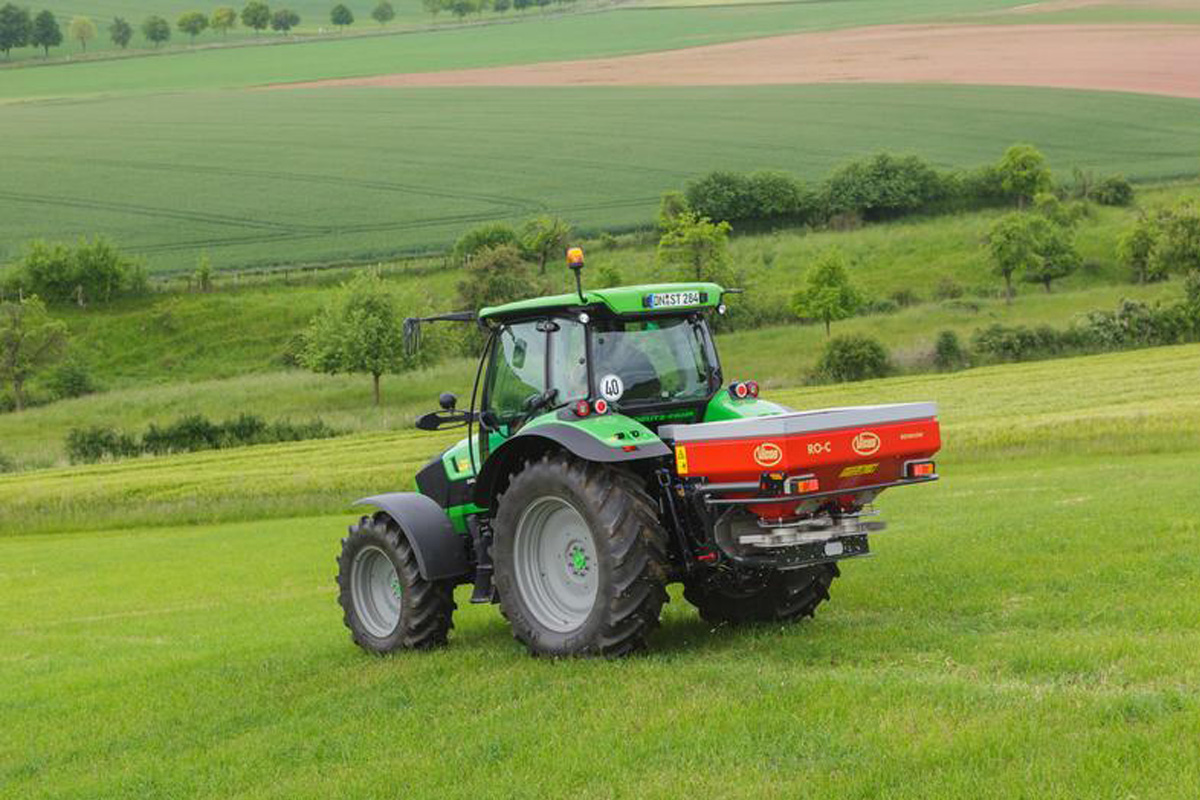

RO-C700 – Compact and complete, the RO-C is controlled either manually or hydraulically. It is the most compact spreader in the range, but features all the elements of the RotaFlow spreader line. The working width is determined by the vane length. The four vanes can also be detached easily for a static calibration test. Application rate adjustment from the calibration position is easy to access. RO-M1100 – The RO-M is the perfect spreader for the medium segment of farms. Each spreading disc has eight vanes and their length determines the working width of the machine. These vanes contribute to the highly accurate spread pattern across the complete working widths, reaching from 10m up to 28m. With the easy to assemble aluminium extension rims, the basic hopper capacity of 1100 litres can be increased up to 1550 or 2000 litres. RO-XL1875 – The High Capacity Model, the RO-XL is the high capacity model of the RotaFlow range. The heavy duty construction of the RO-XL makes it possible to carry up to a maximum of 3.450 or 3.900 litres of fertiliser with three extension rims. Easy setting and adjustment can be done with the FlowPilot on each spreading disc. An innovative drive line to each disc ensures gentle agitation due to the “slow rotating” agitator system, which runs at 15% of the spreading disc speed. Both discs can be shut off independently to spread half the working width, essential for preventing lodging in tapering headlands. RO-EDW 1500 – High Tech Weighing with High Capacity. The The RO-EDW is the top of the weighing range model. This ISOBUS 11783 compatible weighing spreader is equipped with a unique reference sensor. The FlowPilot dashboard on each spreading disc ensures simple and quick setting or adjustment. Different hopper capacities are available; two different basic hoppers of 1.500 and 1.875 litres which can be increased with maximal three hopper extensions up to 3.450 and 3.900 litres capacity. Working widths from 12m up to 45m are possible. The RO-EDW can be operated with the IsoMatch Tellus, IsoMatch Tellus GO or any ISOBUS compatible tractor terminal.

Specifications

RO-C700 Hopper capacity (ltr) – 700 Hopper width (cm) – 154 Filling Height(cm) – 96 Filling Width(cm) – 154 Empty Weight (kg) – 250 Output (kg/min) – 10-230 Spread width (m) – 9-18 RO-M1100 Hopper capacity (ltr) – 1100 Hopper width (cm) – 220 Filling Height(cm) – 100 Filling Width(cm) – 214 Empty Weight (kg) – 325 Output (kg/min) – 10-320 Spread width (m) – 10-24 RO-XL 1500 Hopper capacity (ltr) – 1500 Hopper width (cm) – 275 Filling Height(cm) – 110 Filling Width(cm) – 269 Empty Weight (kg) – 495 Output (kg/min) – 10-320 Spread width (m) – 12-54* *Depending on fertiliser type and type of vanes. RO-XL EDW 1500 Hopper capacity (ltr) – 1500 Hopper width (cm) – 275 Filling Height(cm) – 110 Filling Width(cm) – 269 Empty Weight (kg) – 665 Output (kg/min) – 10-320 Spread width (m) – 12-54 Please download the Vicon Product brochure for more information.

Manufacturer’s Website

Vicon – www.vicon-machinery.com.au
